2007 Kia Sedona BaseFACTORY OEM SERVICE PROCEDURE
FAM (Front Area Module)
- Disconnect the negative (-) battery terminal.
- Remove the FAM cover from the engine room.

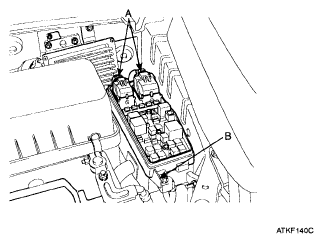

- Remove the 2 FAM connectors (A) and battery terminal nut (B).

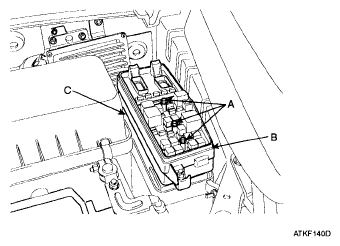

- Remove the IPM (B) from the splash shield (C) after loosening the 3 IPM mounting bolts (A) and the IPM mounting clip.
- Disconnect the connector from the splash shield.
- Installation is the reverse of removal.
