Front Wiper And Washer
- Front wiper working conditions
These functions are active when Ign2 switch ON
In the OFF and ACC states, the front wiper is not activated. If IGN2 turns OFF during wiper operation, the wiper stops at the current position and will move to the park position on the next IGN2 ON. In these states, the front washer is not active.
- Front washer working condition
The front washer functionality is directly available to the driver. It consists in activating the front washer pump, which is located under hood. As long as the driver activates the washer multifunction switch, the front washer is active.

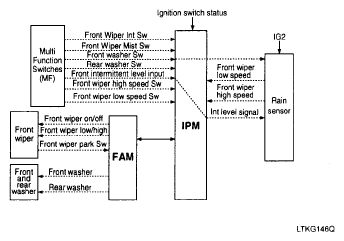

- Functional diagram
