2007 Kia Sedona BaseFACTORY OEM SERVICE PROCEDURE
Central Lock/Unlock
- Central locking/unlocking logic is controlled by IPM. Locking/Unlocking inputs are located in ADM, DDM (Lock/Unlock switch, door knobs, door key cylinder) and in IPM (RKE receiver).
- Locking/Unlocking actuators are located in ADM for passenger door, DDM for driver door and RAM for sliding doors and tailgate.
There are 5 ways of operating central lock/unlock:
- With Key RKE
- With Door Lock/Unlock switches located on ADM/DDM
- With Door Lock Monitoring switches located on the passenger/driver door
- With Door/Tailgate Key Cylinder Lock/Unlock switches located on the tailgate or passenger/driver door.

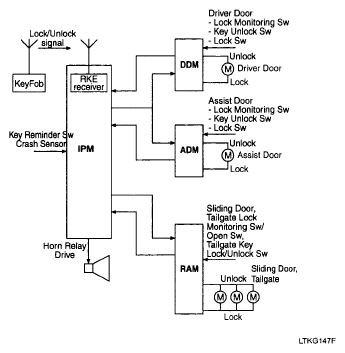

- Functional Diagram
