2007 Kia Sedona BaseFACTORY OEM SERVICE PROCEDURE
Scan Tool Check: Notes
- Turn the ignition switch OFF.

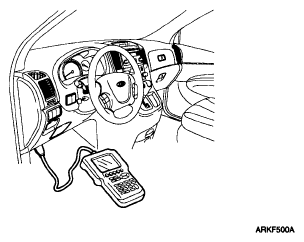

- Connector the Scan tool to the 16P data link connector located the driver's side kick panel.
- Turn the ignition switch ON.
- Check for DTC using the Scan tool
- After completion trouble of the repair or correction of the problem, erase the stored fault codes using the scan tool.
- Disconnect the Scan tool from the 16P data link connector.
