2007 Kia Rondo BaseFACTORY OEM SERVICE PROCEDURE
Transaxle Range (Tr) Switch: Replacement
- Pull up the parking brake.
- Position the shift lever in 'N' range.
- Remove the air cleaner assembly.
- Remove the battery.
- Remove the battery tray.
- Remove the inhibitor switch connector.

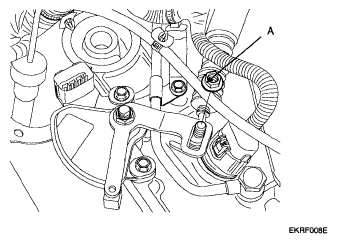

- Remove the shift cable mounting nut (A).
- Remove the inhibitor switch loosening the mounting bolts.

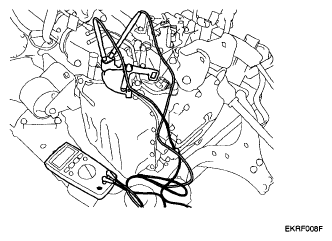

- Referring to INSPECTION , check for continuity. If there is an error, replace the inhibitor switch.
- After tightening the shift cable mounting nut, connect the inhibitor switch.
- Install the battery, battery tray and the air cleaner assembly.
