2007 Kia Rondo BaseFACTORY OEM SERVICE PROCEDURE
Transaxle Oil Temperature Sensor: Replacement
- Remove the automatic transaxle assembly.
- Remove the valve body cover (refer to AUTOMATIC TRANSAXLE ).
- Disconnect the oil temperature sensor connector.

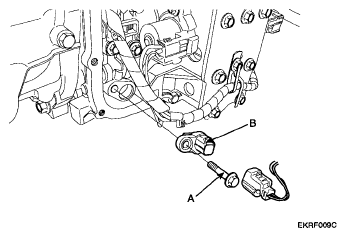

- Remove the oil temperature sensor (B), loosening the mounting bolt (A).
- Replace the sensor with the new one and reassemble the rest of the parts.
