2007 Kia Rondo BaseFACTORY OEM SERVICE PROCEDURE

Input Speed Sensor: Description

WARNING: This page is about a different variant/trim than selected.
INPUT SPEED SENSOR DESCRIPTION

Sensor type
  1. Type : HALL SENSOR
  2. Operating voltage : DC 12V
  3. Current consumption : 22 mA (Max)
Function
  1. Input shaft speed sensor: Detect the input shaft rotation at the OD & REV retainer side to control oil pressure when shifting.
  2. Feedback control, clutch-clutch control, damper clutch control, shift range control, incorrect ratio control and sensor trouble detection signal.

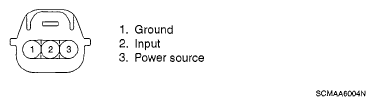

Connector
G05116849Courtesy of KIA MOTORS AMERICA, INC.
Fig 1: Identifying Input Speed Sensor
G04864716Courtesy of KIA MOTORS AMERICA, INC.
AIR GAP SPECIFICATIONS

Item Inspection item Standard value
Air gap Input shaft speed sensor 0.05 in. (1.3 mm)
Sensor resistance Input shaft speed sensor Over 1 MΞ©
Output voltage HIGH Over 4.8V
LOW Below 0.8V
