2007 Kia Rondo BaseFACTORY OEM SERVICE PROCEDURE

Distance To Empty Mode

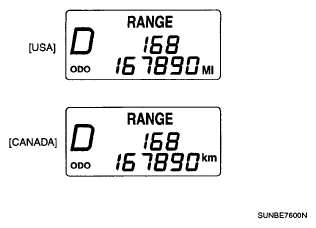

Fig 1: Trip Computer Display - DISTANCE TO EMPTY MODE
G05188099Courtesy of KIA MOTORS AMERICA, INC.
  1. Description

    This mode indicates the estimated distance to empty based on the current fuel in the fuel thank and the amount of fuel delivered to the engine.

  2. Indication range : 50Km ~ 999Km (30miles ~ 999miles)
  3. Indication division : 1Km (mile)

    When the remaining distance is below 50Km (30miles), a blinking "-" symbol will be displayed. (Blinking interval : 1sec.)

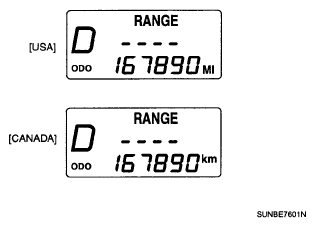

    Fig 2: Trip Computer Display
    G05188100Courtesy of KIA MOTORS AMERICA, INC.
