2007 Kia Rondo BaseFACTORY OEM SERVICE PROCEDURE
Power Window Relay: Inspection
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel. (Refer to "CRASH PAD ")

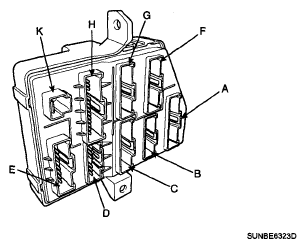

- Remove the junction box.
- Check for continuity between the terminals.
- There should be continuity between the No.1 in the I/P-K and No.7 terminal in the I/P-D when power and ground are connected to the No.12 terminal in the I/P-F and No.9 or 11 terminal in the I/P-G.
- There should be no continuity between the No.12 terminal in the I/P-F and No.9 or 11 terminal in the I/P-G when power is disconnected.
