Component Inspection
- Check communication between ECM and scantool
- IGN "ON" & Engine "OFF".
- Connect scantool to Data Link Connector (DLC).

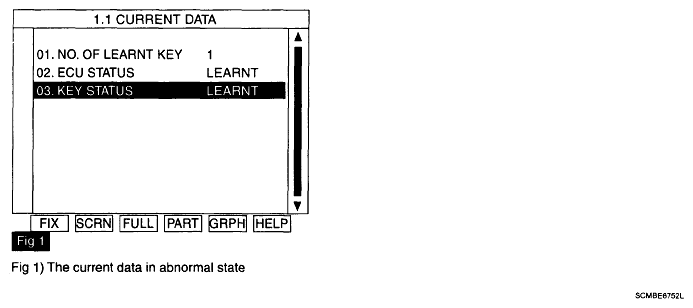

- Erase the DTC and Monitor Parameter of immobilizer on the Scantool.
* Try one more time from "select car model" even if "Communication error" is present on the scantool
- Is the communication between ECM and scantool normal?
YES
If ECM is in "Locked by Timer" status. Keep "KEY ON" status for 1 hours to withdraw "Locked by Timer" status. Then repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
Substitute with a known-good scantool and check for proper operation.
If the problem is corrected, Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
