2007 Kia Rondo BaseFACTORY OEM SERVICE PROCEDURE

Audio System: Inspection: Notes

Check for resistance between No.2 and No.3 terminals in each switch position.

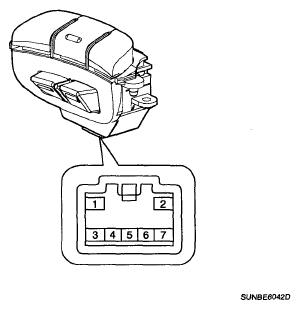

Fig 1: Identifying Switch No.2 And No.3 Terminals
Courtesy of KIA MOTORS AMERICA, INC.

TERMINALS REFERENCE

Switch	Connector terminal	Resistance (±5%)
VOLUME DOWN	2 - 3 (Left)	6.81 kΩ
VOLUME UP	2 - 3 (Left)	4.61 kΩ
MODE	2 - 3 (Left)	2.11 kΩ
CH/SEEK DOWN	2 - 3 (Left)	1.11 kΩ
CH/SEEK UP	2 - 3 (Left)	430 Ω
