2007 Kia Rio Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Charging Systems: Generator: Disassembly

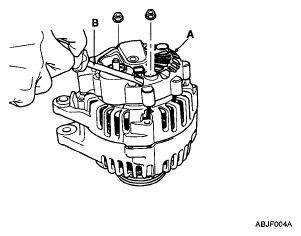

Remove the generator cover(A) using a screw driver(B).

Fig 1: Removing Generator Cover
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting bolts(A) and disconnect the brush holder assembly(B).

Fig 2: Identifying Mounting Bolts And Brush Holder Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the slip ring guide(A).

Fig 3: Identifying Slip Ring Guide
Courtesy of KIA MOTORS AMERICA, INC.
Remove the nut, pulley(A) and spacer.

Fig 4: Identifying Nut, Pulley And Spacer
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the 4 through bolts(A).

Fig 5: Identifying Through Bolts
Courtesy of KIA MOTORS AMERICA, INC.

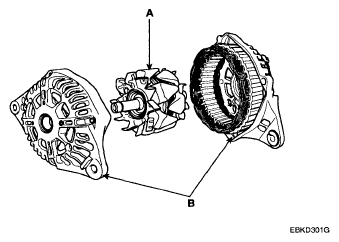

Disconnect the rotor(A) and cover(B).

Fig 6: Identifying Rotor And Cover
Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse of disassembly.
