2007 Kia Rio Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Hi-Scan (Pro) Check: Notes
- Turn the ignition switch OFF.

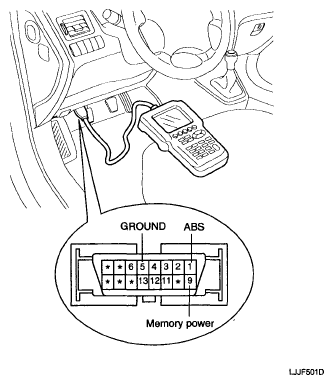

- Connector the Hi-scan (pro) to the 16P data link connector located the driver's side kick panel.
- Turn the ignition switch ON.
- Check for diagnostic trouble using the Hi-scan (pro)
- After completion trouble of the repair or correction of the problem, erase the stored fault codes the clear key on the Hi-scan (pro).
- Disconnect the Hi-scan (pro) from the 16P data link connector.
