2006 Kia Spectra L4-2.0LFACTORY OEM SERVICE PROCEDURE
Cruise Control Switch: Testing and Inspection
CRUISE CONTROL MAIN SWITCH
INSPECTION

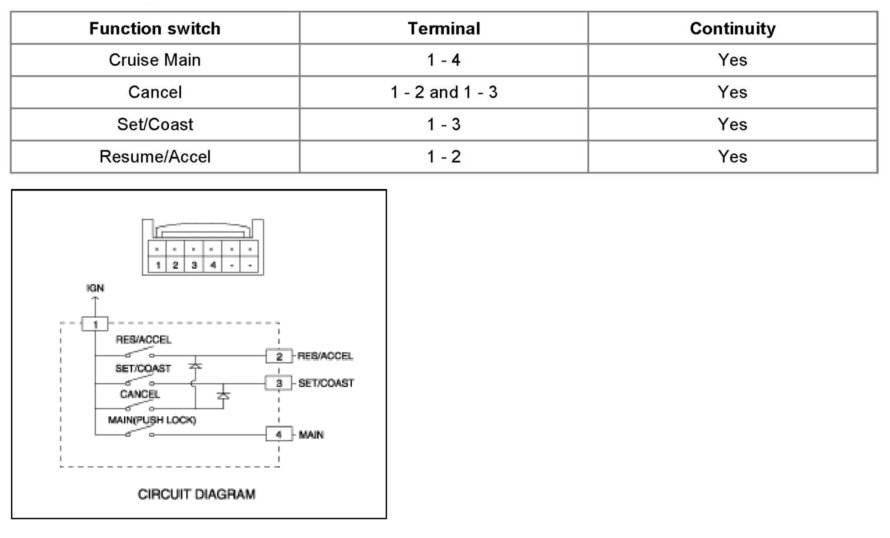

1. Disconnect the cruise control switch connector.
2. Measure continuity between terminals on the control switch when each function switch is ON.
3. If there is no continuity, replace the auto cruise switch.
INSPECTION
1. Disconnect the cruise control switch connector.
2. Measure continuity between terminals on the control switch when each function switch is ON.
3. If there is no continuity, replace the auto cruise switch.
