2006 Kia Spectra L4-2.0LFACTORY OEM SERVICE PROCEDURE
Programming and Relearning
TRANSMITTER CODE REGISTRATION
1. To register transmitter code, first connect DLC (Data Link Connector) cable to the multi purpose check connector at the engine room, turn the power on hi-scan.
2. Select the vehicle model and then do "CODE SAVING".

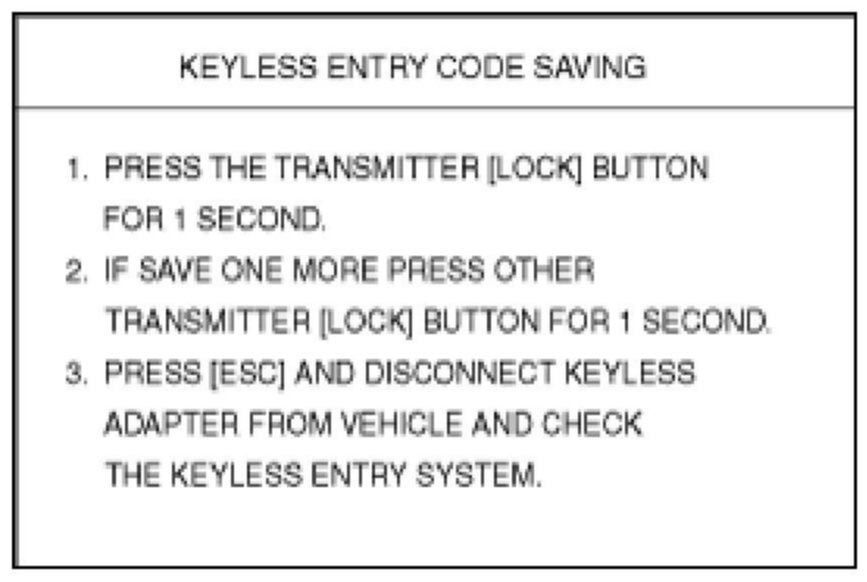

3. After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown.
4. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 3 and then code saving is completed.
5. Disconnect DLC cable from the multi purpose check connector and check the function of transmitter.
1. To register transmitter code, first connect DLC (Data Link Connector) cable to the multi purpose check connector at the engine room, turn the power on hi-scan.
2. Select the vehicle model and then do "CODE SAVING".
3. After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown.
4. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 3 and then code saving is completed.
5. Disconnect DLC cable from the multi purpose check connector and check the function of transmitter.
