2005 Kia Spectra5 2.0 1, AutomaticFACTORY OEM SERVICE PROCEDURE

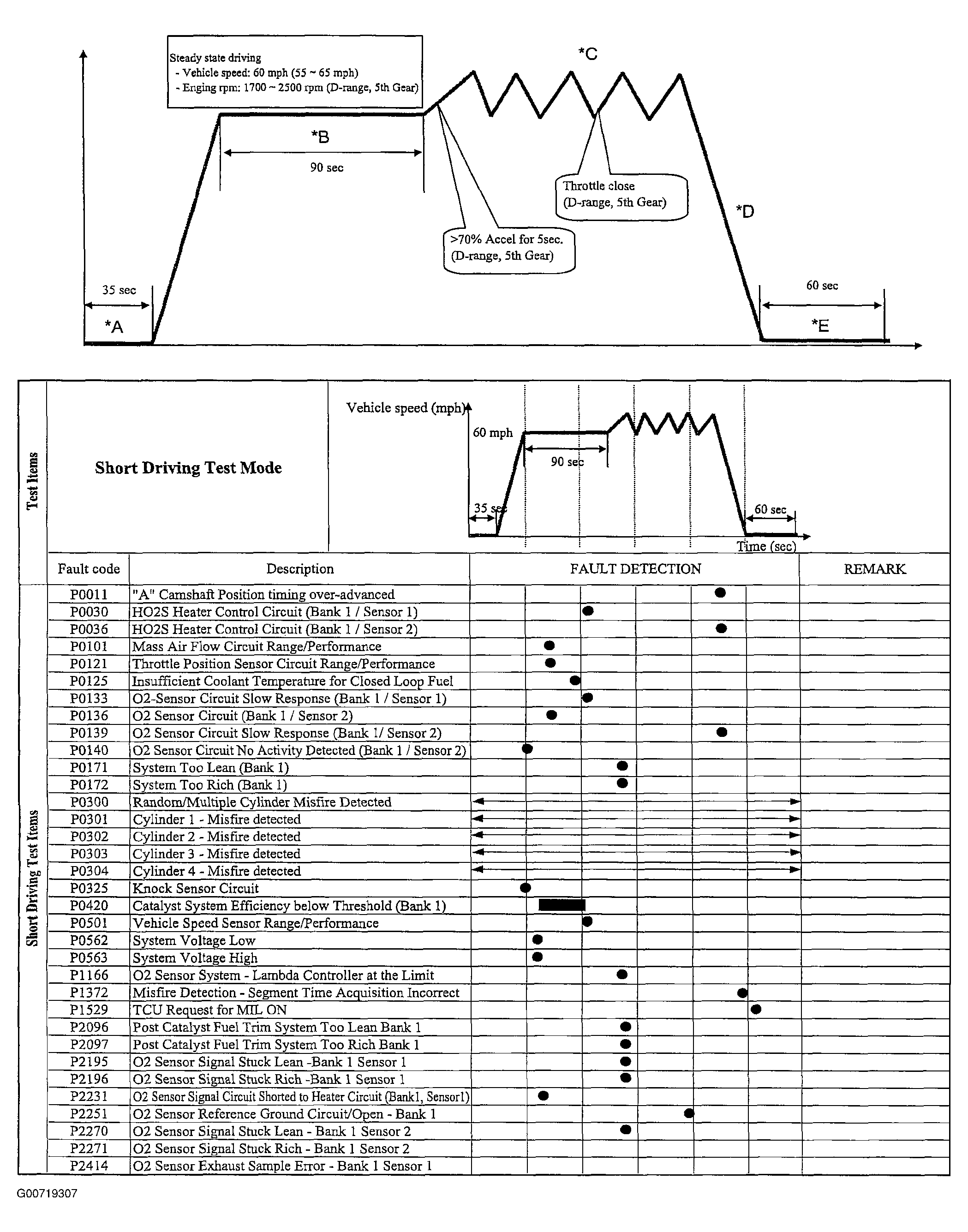

Short Driving Test Mode
- Connect Hi-Scan (Pro) to the Data Link Connector (DLC).
- Select the DTC function of Hi-Scan (Pro).
- Start the engine and let the engine at idle for 35 seconds or more (* A).
- Drive the vehicle at 60 mph (55 ~ 65 mph) for 90 seconds or more (* B).
- Accelerate the vehicle with high acceleration (more than 70% of TPS) for 5 seconds and decelerate with closed throttle for 7 seconds more than five times (* C), then decelerate the vehicle to stop (* D).
- Let the engine at idle for 60 seconds or more (* E).
