2005 Kia Spectra5 2.0 1, AutomaticFACTORY OEM SERVICE PROCEDURE
Idle Test Mode (Comprehensive Component)
- Connect Hi-Scan (Pro) to the Data Link Connector (DLC).
- Select the DTC function of Hi-Scan (Pro).

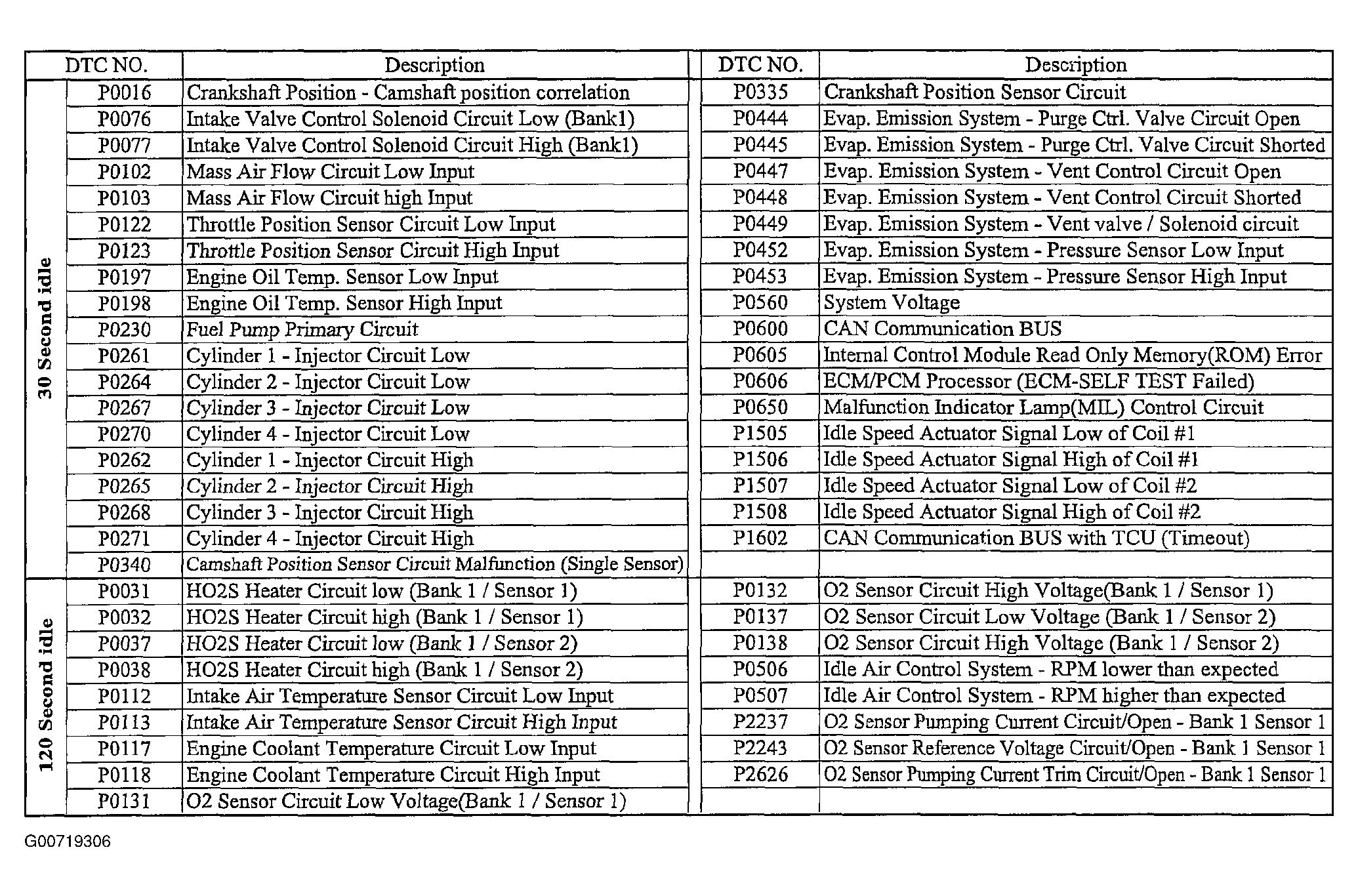

- Start the engine and let the engine at idle for 30 seconds or 120 seconds as mentioned in illustration below respectively.
- The given time in illustration below is the required time after starting the engine with warmed-up vehicle.
