2005 Kia Sedona EXFACTORY OEM SERVICE PROCEDURE

Throttle Position (TP) Sensor

Connect a HI-SCAN to the data link connector.

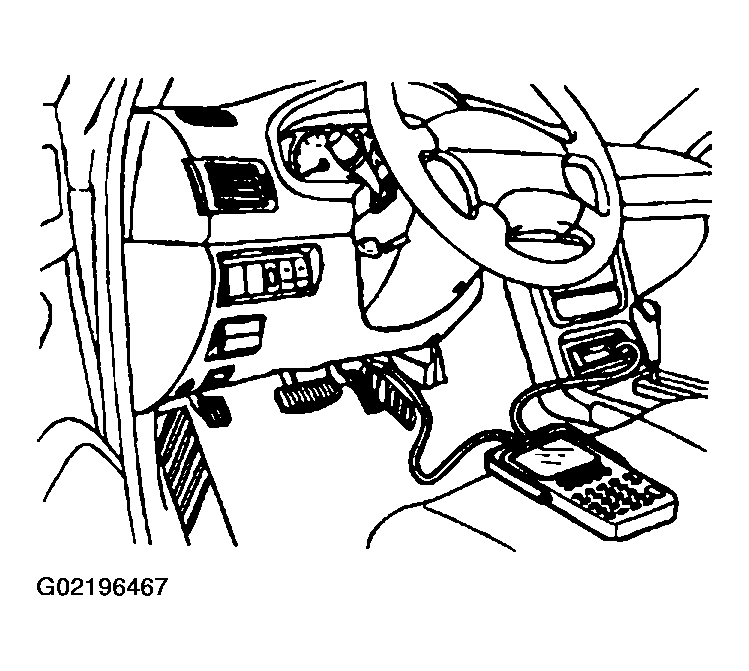

Fig 1: Connecting Hi Scan Tool
Courtesy of KIA MOTORS AMERICA, INC.
If a HI-SCAN is not used, connect a digital type voltmeter between connector 1 and 3.
Turn the ignition switch to the ON position (do not start engine) and check that the TP Sensor output voltage is as specified. If a HI-SCAN is used, press code No. 14 and read the voltage.
Standard value: 300 - 900 mV

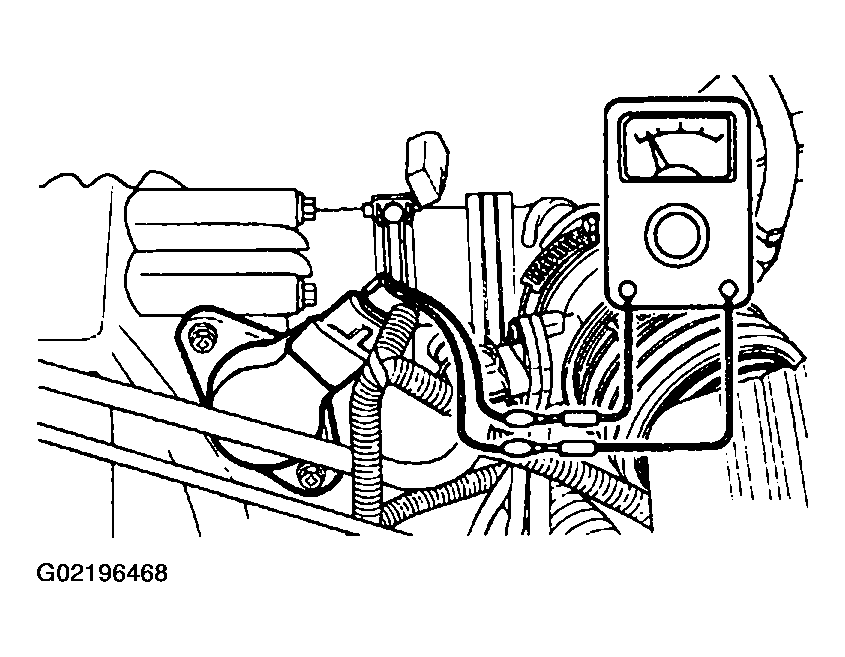

Fig 2: Measuring TPS Sensor Voltage
Courtesy of KIA MOTORS AMERICA, INC.
If it is out of specification, loosen TP Sensor mounting screws and adjust by turning the TP Sensor.

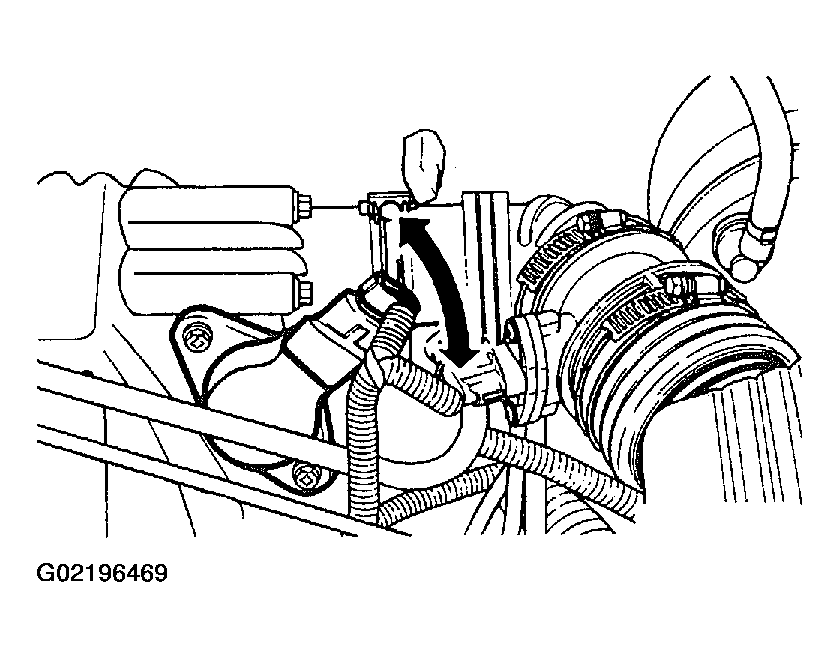

Fig 3: Adjusting TPS Sensor
Courtesy of KIA MOTORS AMERICA, INC.
