2005 Kia Sedona EXFACTORY OEM SERVICE PROCEDURE

Basic Idle Speed Adjustment

NOTE:
  • Before adjusting idle speed, be sure to check the basic ignition timing and adjust if out of specification. Check that the spark plugs, injectors, ISC motor, compression, etc. are normal.
  • Clean the throttle body area.

Adjustment conditions;

Engine coolant temperature is 80 to 95°C (176 to 205°F). Lights, electric cooling fan and all accessories are off. Transaxle is in neutral ("P" or "N" range for A/T vehicles). Steering wheel in straight forward position (Vehicles with power steering).

  1. Loosen the accelerator cable.
  2. Connect the HI-SCAN to the data link connector in the fuse box.
  3. If the HI-SCAN is not used, connect a tachometer, and ground the No. 8 pin in the data link connector.

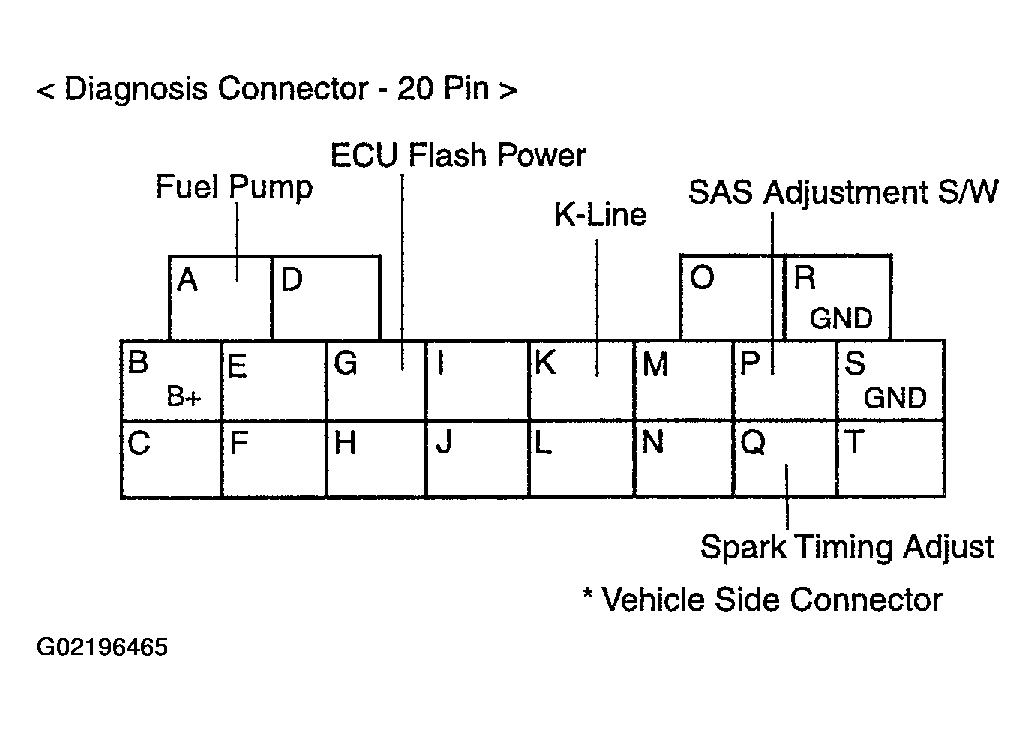

    Diagnosis Connector - 20 Pin

    Fig 1: Illustrating 20 Pin Connector Pinout
    G02196465Courtesy of KIA MOTORS AMERICA, INC.

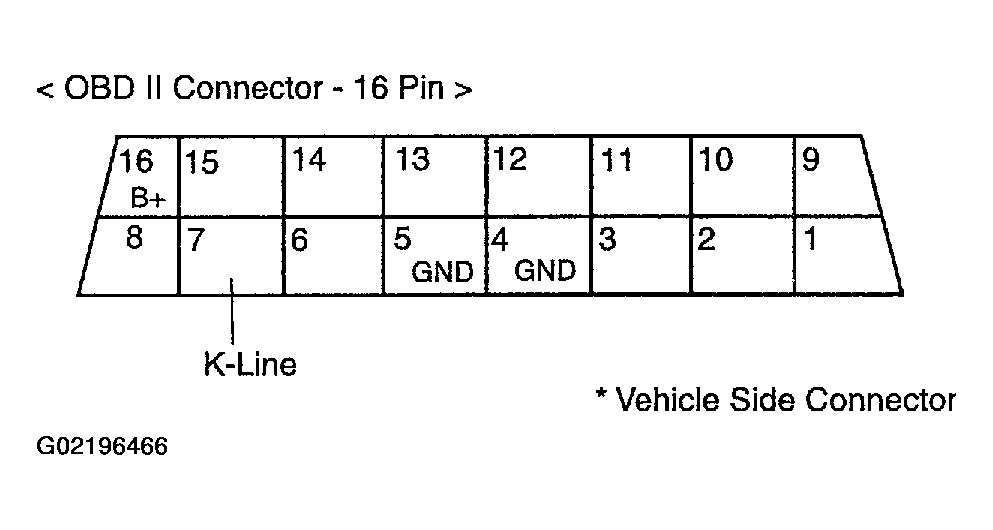

    OBD II Connector - 16 Pin

    Fig 2: Illustrating 16 Pin Connector Pinout
    G02196466Courtesy of KIA MOTORS AMERICA, INC.
