2005 Kia Sedona EXFACTORY OEM SERVICE PROCEDURE

Cooling Fan Controller

Engine ECM controls the rate of cooling fan with engine coolant temperature and vehicle speed. The cooling fan controller receives signal from the ECM to control the rate of cooling fan.

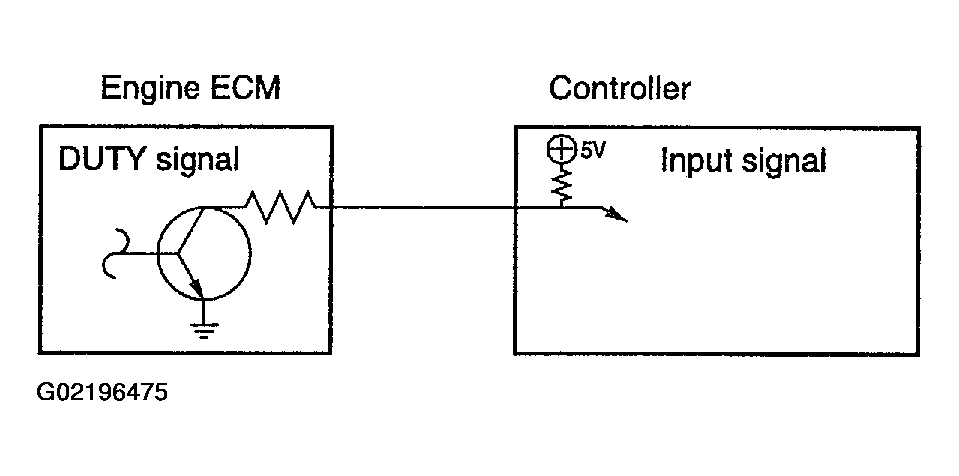

Fig 1: Cooling Fan Controller Circuit

Courtesy of KIA MOTORS AMERICA, INC.
