Resistance Inspection

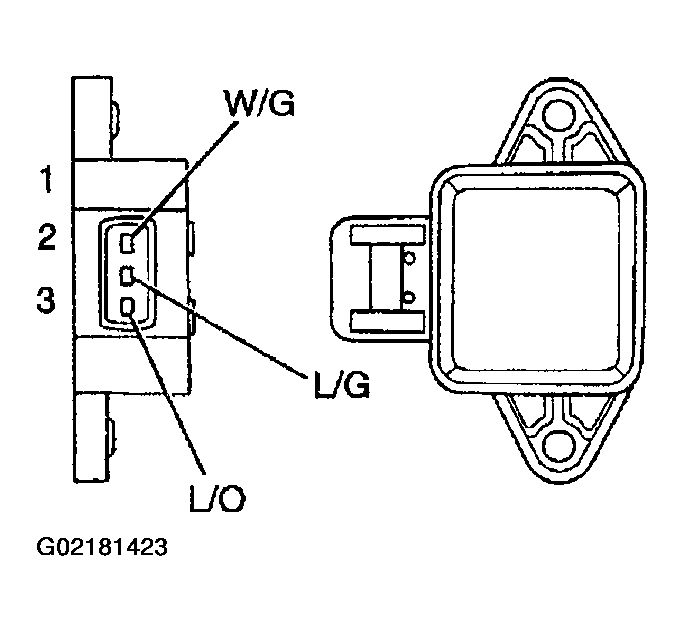

- Disconnect connector from throttle position sensor.
- Connect ohmmeter between sensor terminals 1 and 2.

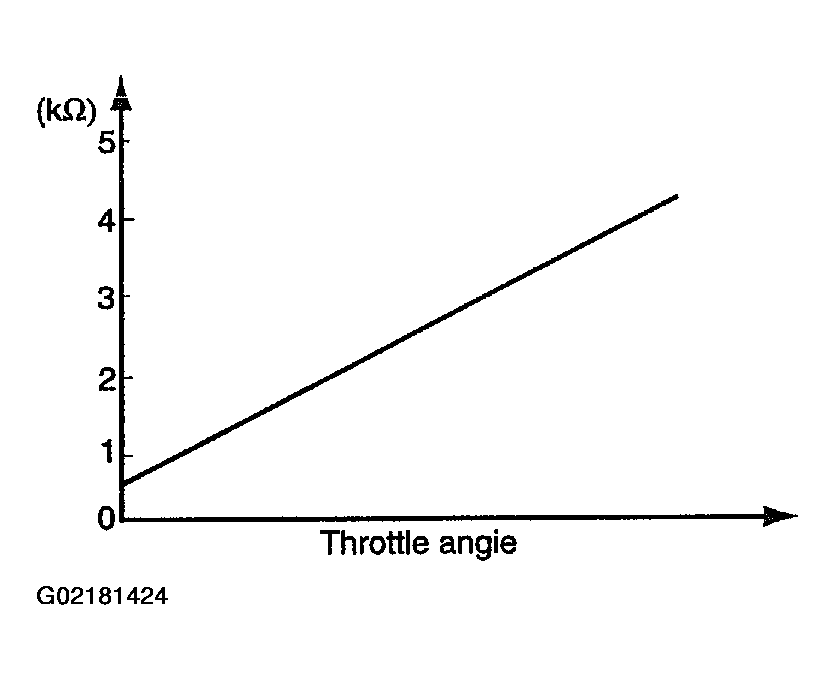

- Verify that resistance increases linearly according to throttle angle.
Specification: 1.6~2.4 kΞ© (with throttle valve closed)
- If resistance is not as specified, replace the throttle position sensor.
- Connect throttle position sensor connector.
