Installation & Inspection

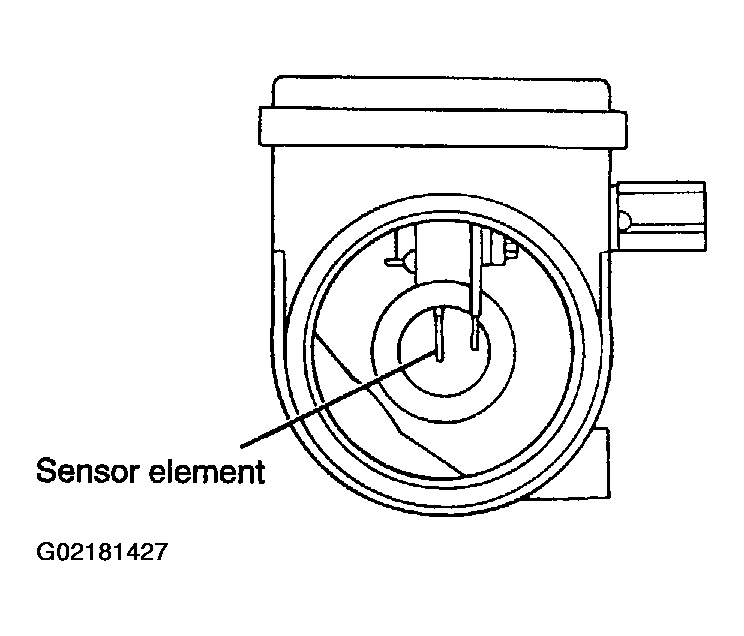

- Attach mass air flow sensor to air intake hose and to mounting bracket.
- Replace two bolts to retain mass air flow sensor to mounting bracket.
Tightening Torque: 69~96.3 lb. in (7.8.8 N.m, 0.8 kg.m)
- Reconnect air intake hose to the mass air flow sensor.
- Tighten bolts of retaining clamps on both sides of mass air flow sensor.
- Reconnect mass air flow sensor connector to sensor.
- Warm up engine to normal operating temperature and let engine idle.

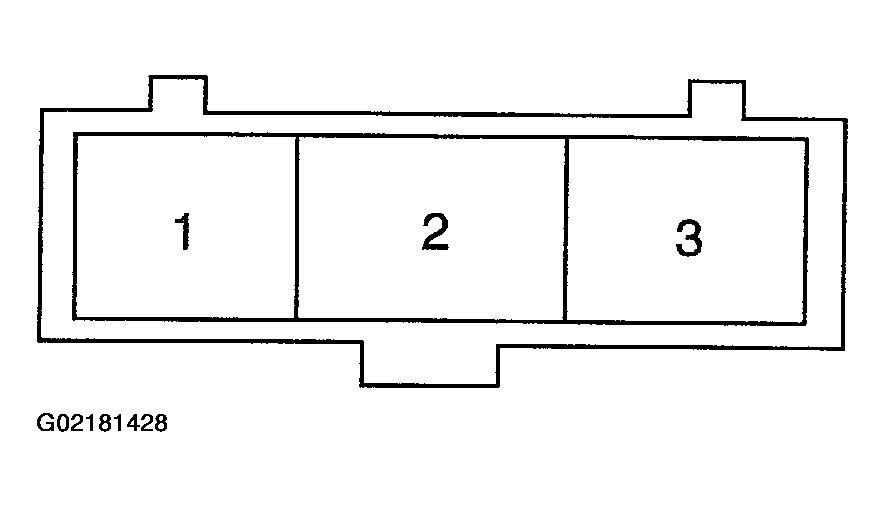

- Connect voltmeter between terminal 2 (G/L) and ground.
- Verify that the voltage varies between 0.6V~0.8V.
- Rev up engine and verify that voltage varies between 3.0V~4.0V.
- If voltage is not within specification, replace mass air flow sensor.
