2005 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
Evaporative & ORVR Emission Control System

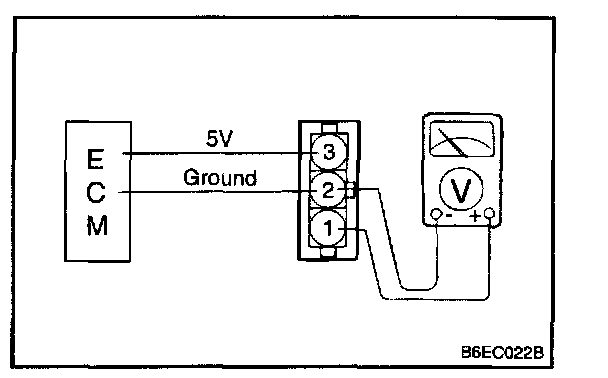

1. Prepare a voltmeter and connect it to FTP pins as shown.
2. After 20 min. idling , inspect the voltage.

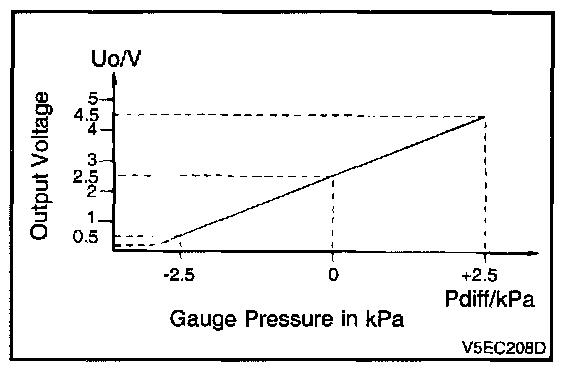

System voltage 5 V
At acceleration Max. 4.5, Min. 0.5 V
3. At idle, inspect that voltage fluctuates to accelerate rpm up and down.
NOTE: If voltage is not within spec. as procedures, there is leakage and inspect the fuel tank and hoses toward canister and fuel neck. Then repair or replace relevant parts.
