ETACS Function
OPERATION CHECK OF COMPONENTS
While operating the components, check whether the operations are normal with timing chart.
ETACS FUNCTION

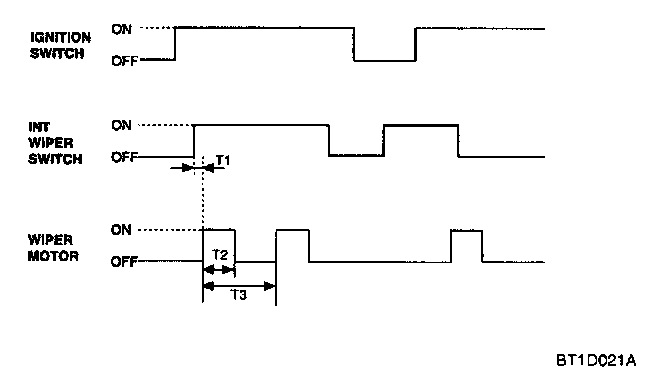

1. Variable intermittent wiper
Time specification
T1 : Max. 0.3 sec.
T2 : Time of wiper motor 1 rotation (0.6 - 0.8 sec.).
T3 : 2.2 ± 0.2 sec. (VR = 0 k Ohm) - 10.0 ± 1.0 sec. (VR = 50 k Ohm)

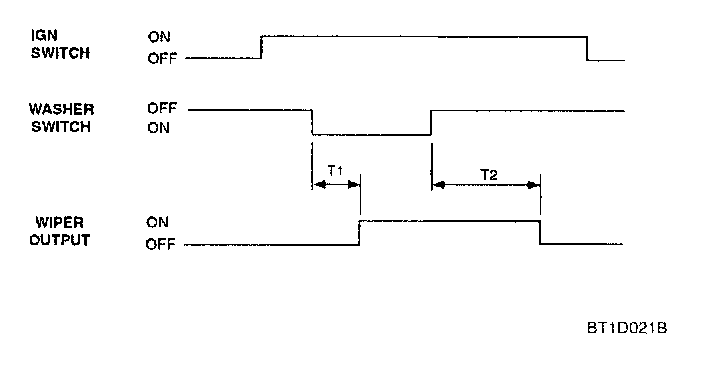

2. Washer related wiper
1. Time specification
T1 : 0.6 sec.
T2 : 2.5 - 3.8 sec.
2. This function should be operated preferentially even though the variable intermittent wiper is operating.

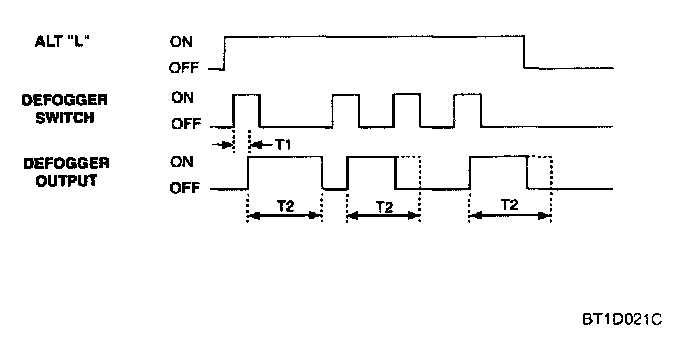

3. Rear window defogger
Time specification
T1 : 60 msec.
T2 : 20 ± 1 Min.

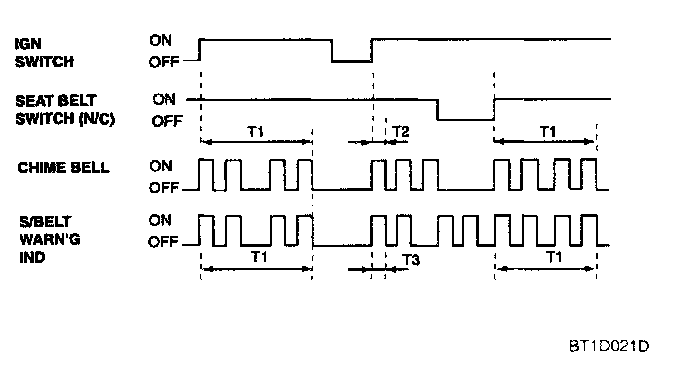

4. seat belt warning
Time specification
T1 : 6 ± 1 sec.
T2 : 0.45 ± 0.1 sec.
T3 : 0.3 ± 0.1 sec.

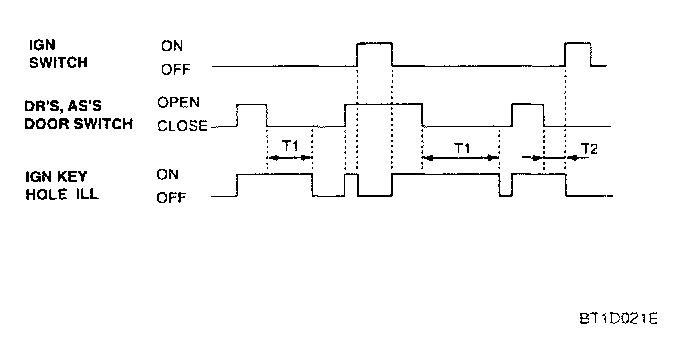

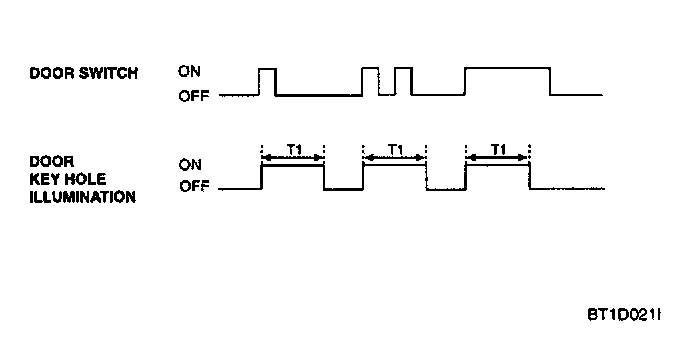

5. Ignition key hole illumination
Time specification
T1 : 10 ± 1.0 sec.
T2 : 0 - 10 sec.

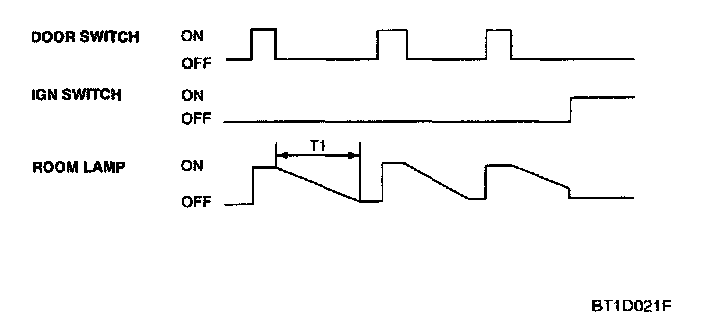

6. Delayed out room lamp
Time specification
T1 : 5.5 ± 0.5 sec.

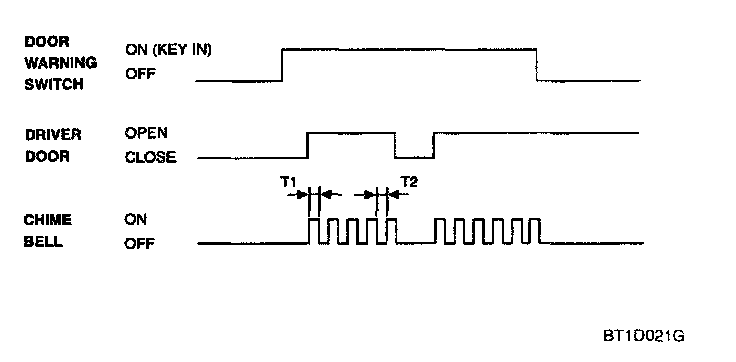

7. Key operated warning
Time specification
T1, T2 : 0.45 ± 0.1 sec

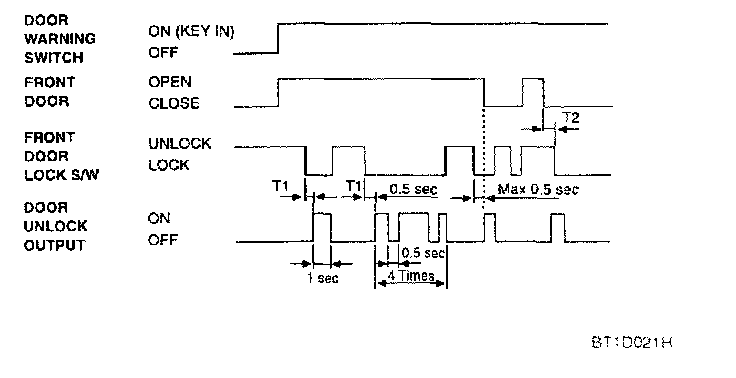

8. Ignition key reminder
Time specification
T1 : 0.5 sec.
T2 : 0 - 0.5 sec.
9. Outside door key illumination (without burglar alarm)
Time specification
T1 : 10 ± 1.0 sec.
10. Power window timer
Time specification
T1 :30 ± 5 sec.
11. Central door lock/unlock (without burglar alarm)
Time specification
T : 0.5 ± 0.1 sec.

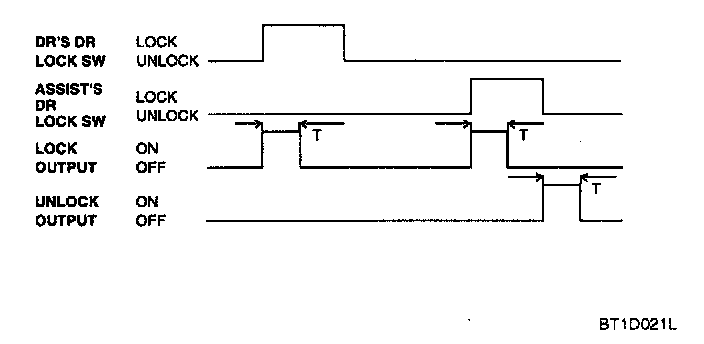

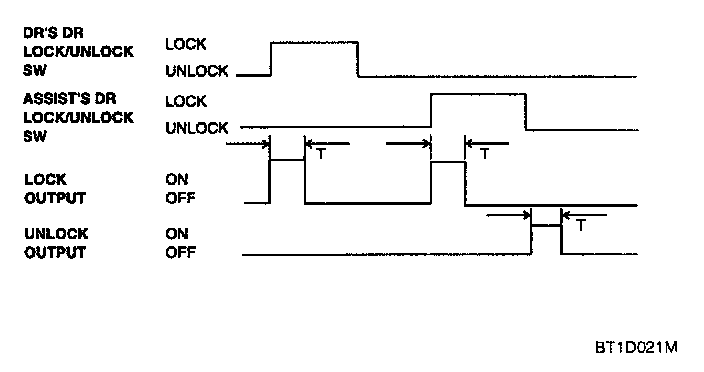

12. Central door lock/unlock (with burglar alarm)
1. When using the door key
Time specification
T : 0.5 ± 0.1 sec.

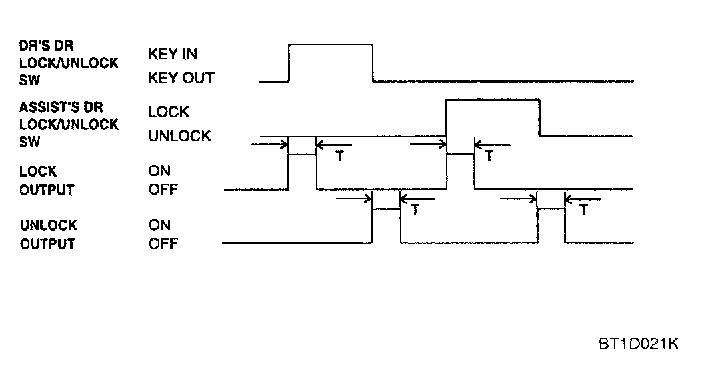

2. When using the door lock knob switch
Time specification
T : 0.5 ± 0.1 sec.

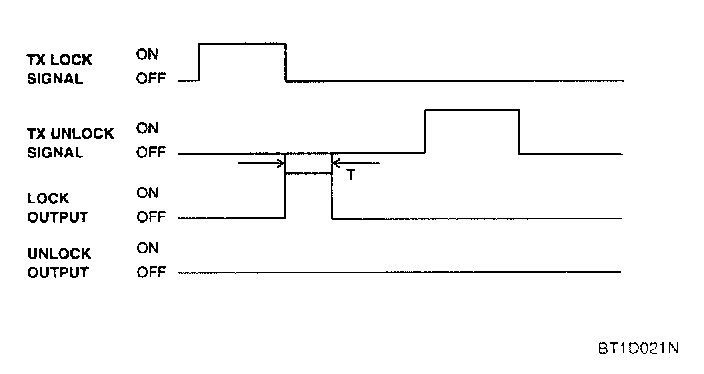

3. When using the transmitter (TX)
Time specification
T : 0.5 ± 0.1 sec.

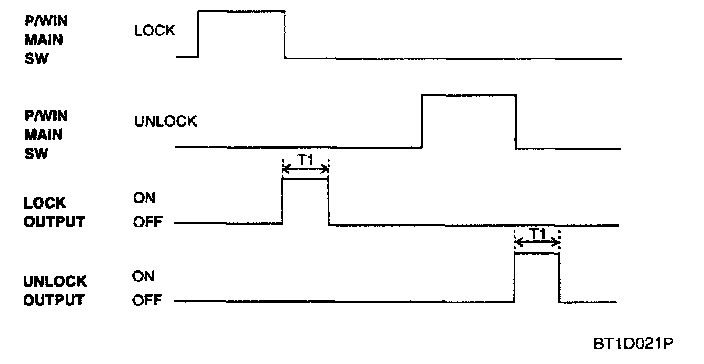

4. Power window main door lock switch
Time specification
T : 0.5 ± 0.1 sec.

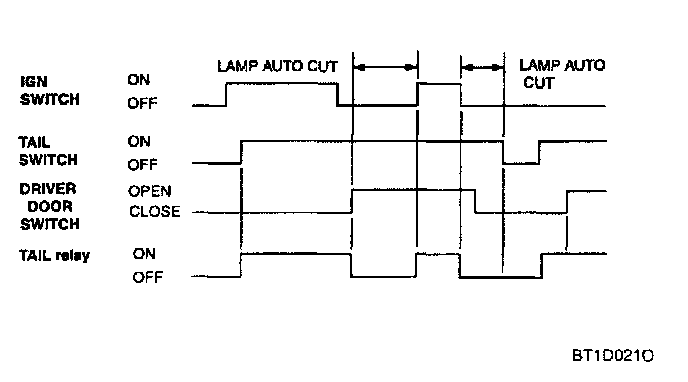

13. Tail lamp auto cut

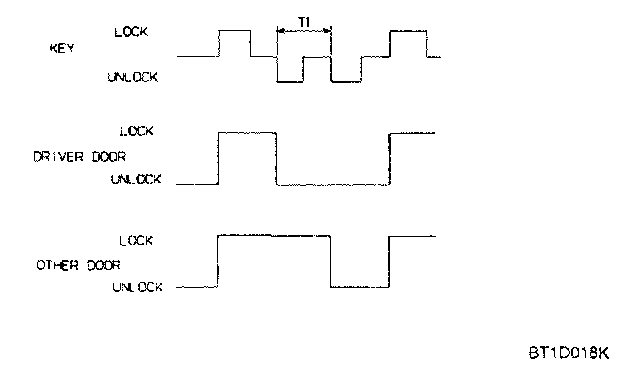

14. Two-Turn unlock
Time specification
T1 : 3 ± 0.5 sec.
While operating the components, check whether the operations are normal with timing chart.
ETACS FUNCTION
1. Variable intermittent wiper
Time specification
T1 : Max. 0.3 sec.
T2 : Time of wiper motor 1 rotation (0.6 - 0.8 sec.).
T3 : 2.2 ± 0.2 sec. (VR = 0 k Ohm) - 10.0 ± 1.0 sec. (VR = 50 k Ohm)
2. Washer related wiper
1. Time specification
T1 : 0.6 sec.
T2 : 2.5 - 3.8 sec.
2. This function should be operated preferentially even though the variable intermittent wiper is operating.
3. Rear window defogger
Time specification
T1 : 60 msec.
T2 : 20 ± 1 Min.
4. seat belt warning
Time specification
T1 : 6 ± 1 sec.
T2 : 0.45 ± 0.1 sec.
T3 : 0.3 ± 0.1 sec.
5. Ignition key hole illumination
Time specification
T1 : 10 ± 1.0 sec.
T2 : 0 - 10 sec.
6. Delayed out room lamp
Time specification
T1 : 5.5 ± 0.5 sec.
7. Key operated warning
Time specification
T1, T2 : 0.45 ± 0.1 sec
8. Ignition key reminder
Time specification
T1 : 0.5 sec.
T2 : 0 - 0.5 sec.
9. Outside door key illumination (without burglar alarm)
Time specification
T1 : 10 ± 1.0 sec.
10. Power window timer
Time specification
T1 :30 ± 5 sec.
11. Central door lock/unlock (without burglar alarm)
Time specification
T : 0.5 ± 0.1 sec.
12. Central door lock/unlock (with burglar alarm)
1. When using the door key
Time specification
T : 0.5 ± 0.1 sec.
2. When using the door lock knob switch
Time specification
T : 0.5 ± 0.1 sec.
3. When using the transmitter (TX)
Time specification
T : 0.5 ± 0.1 sec.
4. Power window main door lock switch
Time specification
T : 0.5 ± 0.1 sec.
13. Tail lamp auto cut
14. Two-Turn unlock
Time specification
T1 : 3 ± 0.5 sec.
