2005 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
Timer/Control Unit: Service and Repair
REMOVAL
1. Disconnect the negative (-) battery terminal.
2. Remove the lower crash pad.

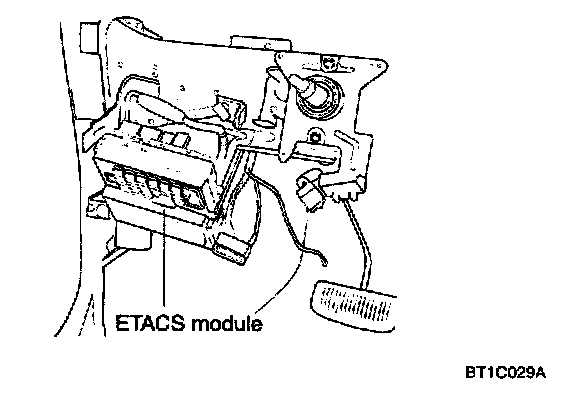

3. Remove the bolts holding the ETACS module and disconnect the connectors.
INSTALLATION
1. Installation is the reverse of removal.
1. Disconnect the negative (-) battery terminal.
2. Remove the lower crash pad.
3. Remove the bolts holding the ETACS module and disconnect the connectors.
INSTALLATION
1. Installation is the reverse of removal.
