2005 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
Torque Specifications
HEAD BOLT INSTALLATION
1. Clean all gasket surfaces of the cylinder block and cylinder head.
2. Install a new cylinder head gasket onto the cylinder head assembly. Do not apply sealant to the gasket and do not reuse the old cylinder head gasket.

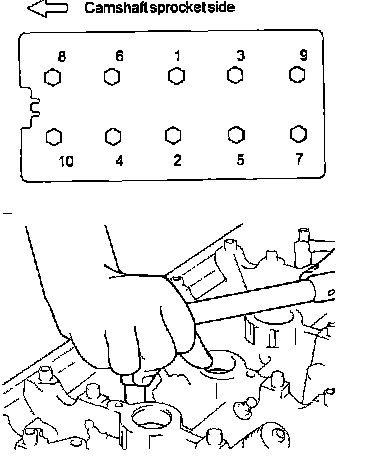

3. Install the cylinder head bolts as shown in the illustration.
NOTE:
Check and measure the length of bolt.
Maximum length: 99.4 ± 0.35 mm (3.9 in.)

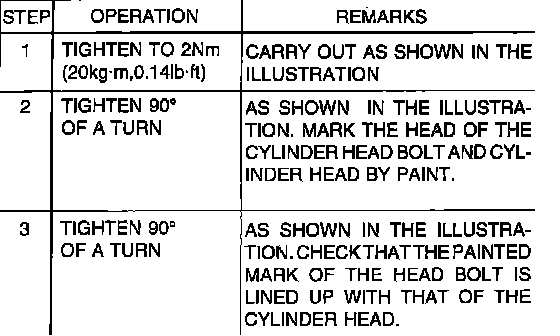

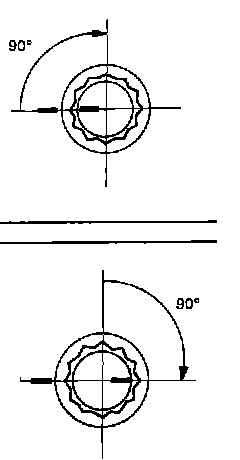

4. Tighten the bolts according to the following procedure.
Procedures for Installing Cylinder Head
(With Replacing Head Bolts)
Head Bolt Installation
Procedures for installing cylinder head
(Without replacing head bolts)
1. Clean all gasket surfaces of the cylinder block and cylinder head.
2. Install a new cylinder head gasket onto the cylinder head assembly. Do not apply sealant to the gasket and do not reuse the old cylinder head gasket.
3. Install the cylinder head bolts as shown in the illustration.
NOTE:
Check and measure the length of bolt.
Maximum length: 99.4 ± 0.35 mm (3.9 in.)
4. Tighten the bolts according to the following procedure.
Procedures for Installing Cylinder Head
(With Replacing Head Bolts)
Head Bolt Installation
Procedures for installing cylinder head
(Without replacing head bolts)
