2005 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
ECM Terminal Layout With TCM

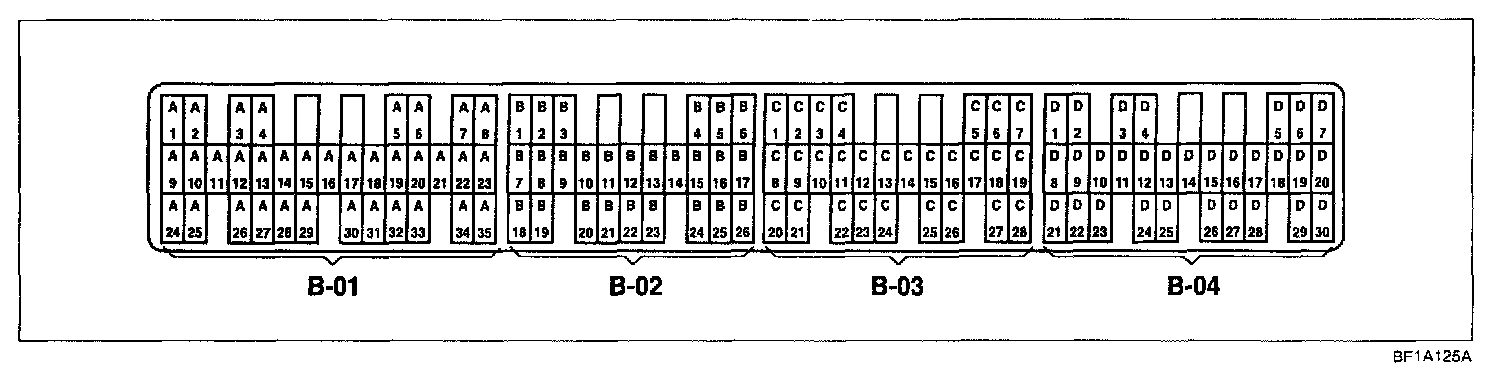

ECM Terminal Layout Pinouts With TCM:
ECM Terminal Layout Pinouts With TCM

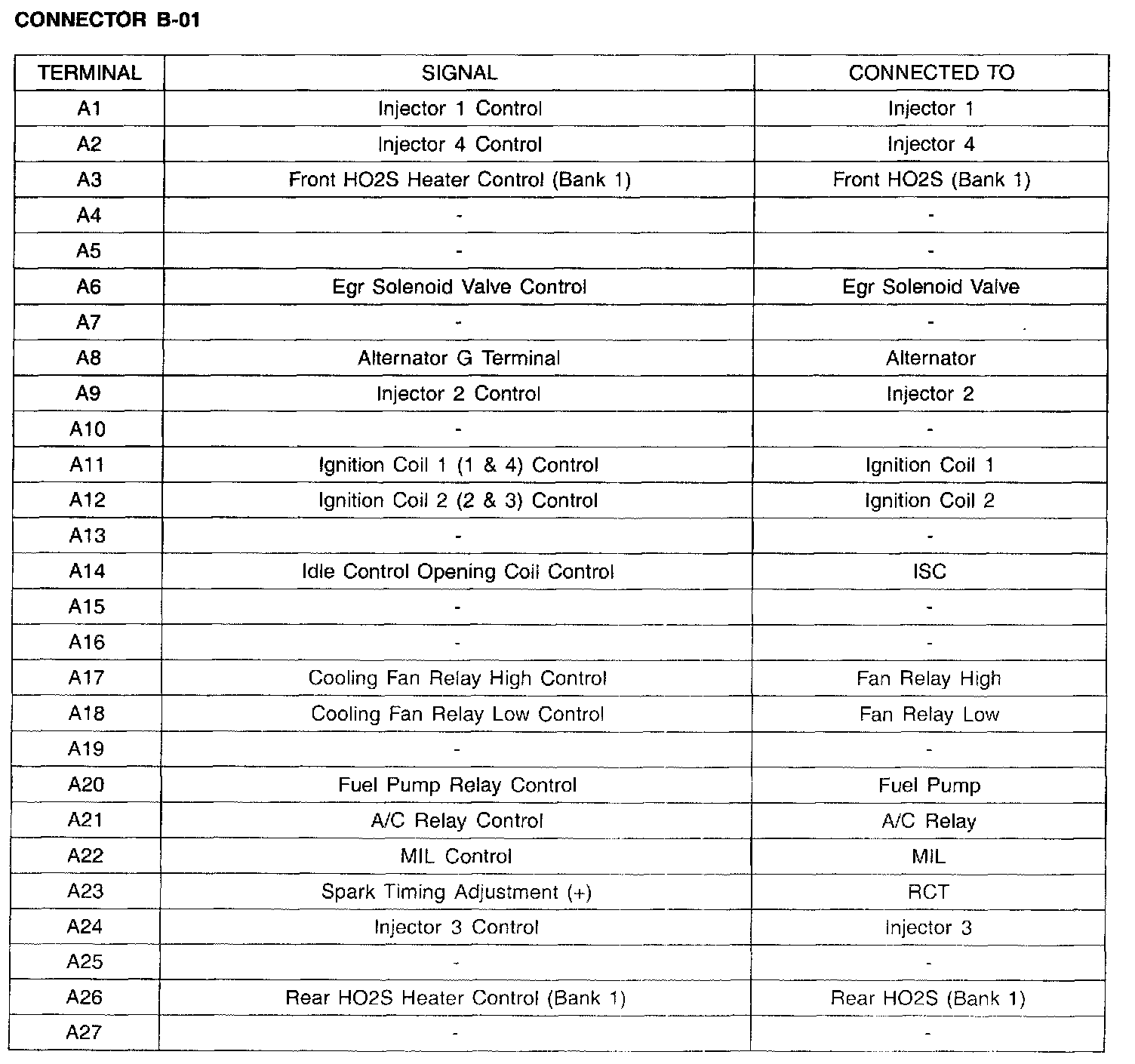

Connector B-01 (Ter. A1 - A27):

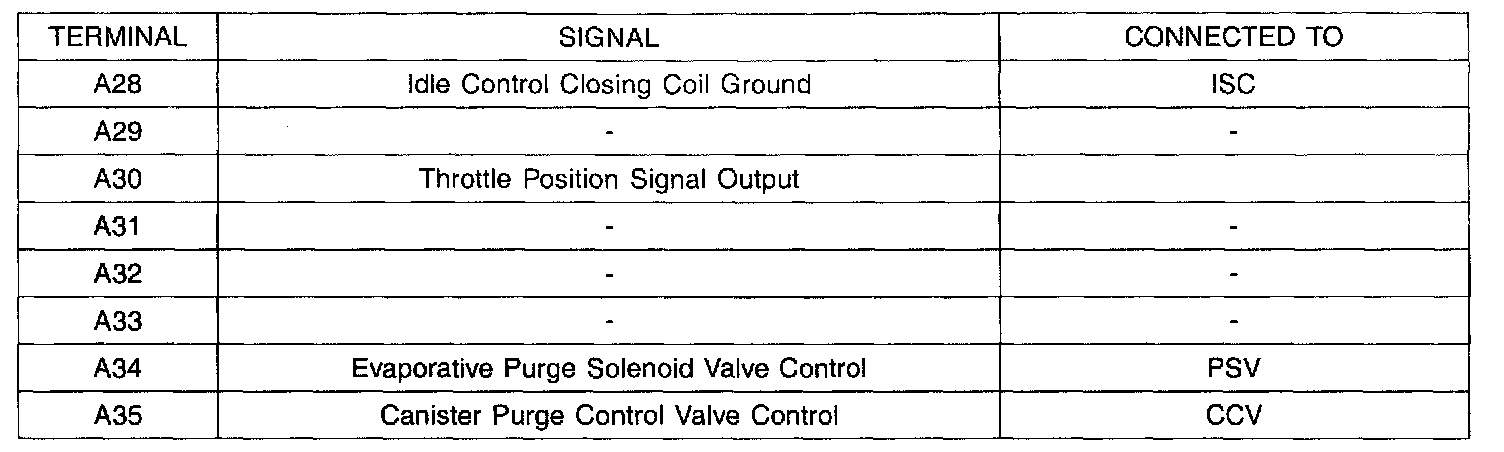

Connector B-01 (Ter. A28 - A35):
Connector B-01

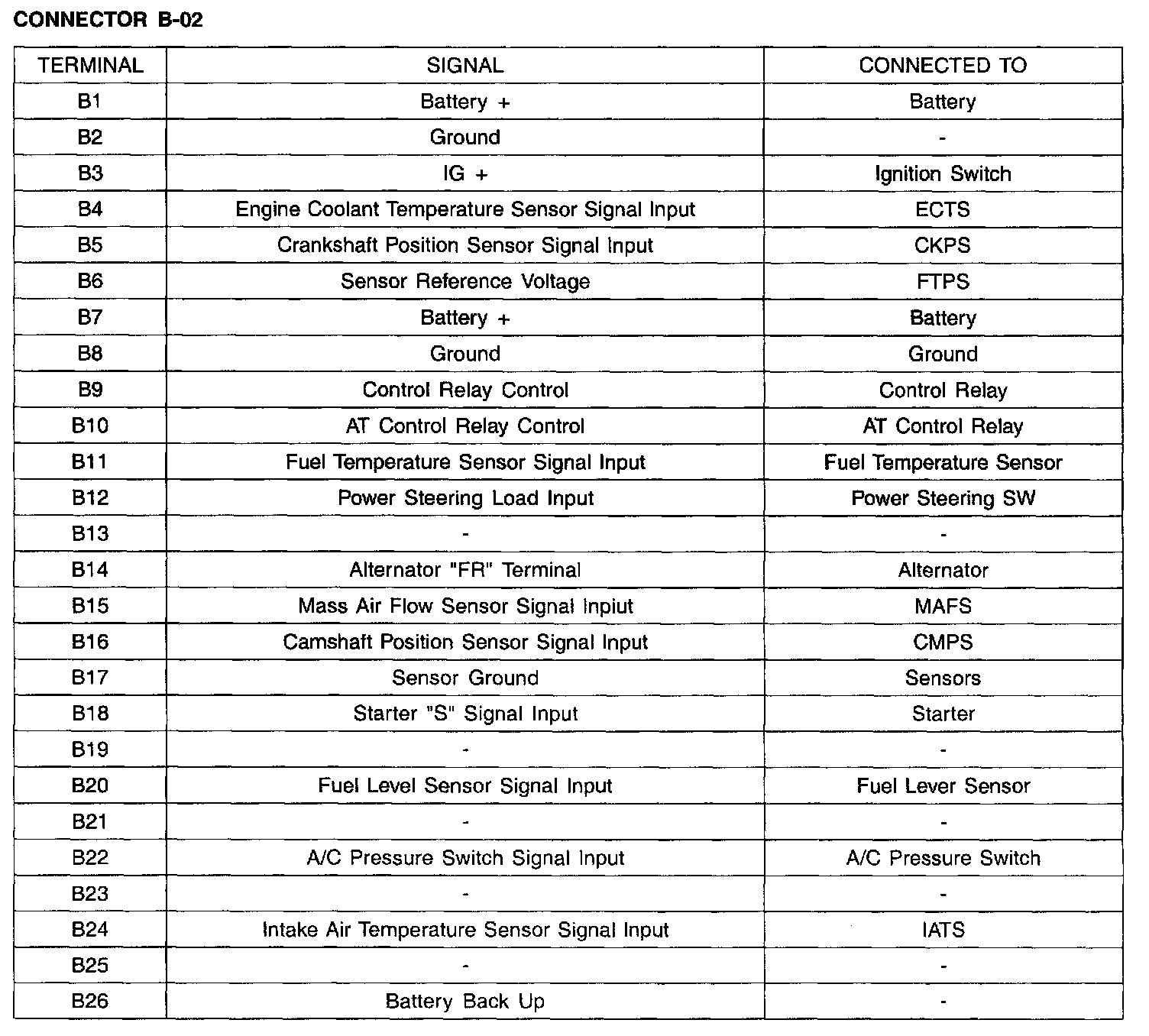

Connector B-02 (Ter. B1 - B26):
Connector B-02
Connector B-03 (Ter. C1 - C28):
Connector B-03

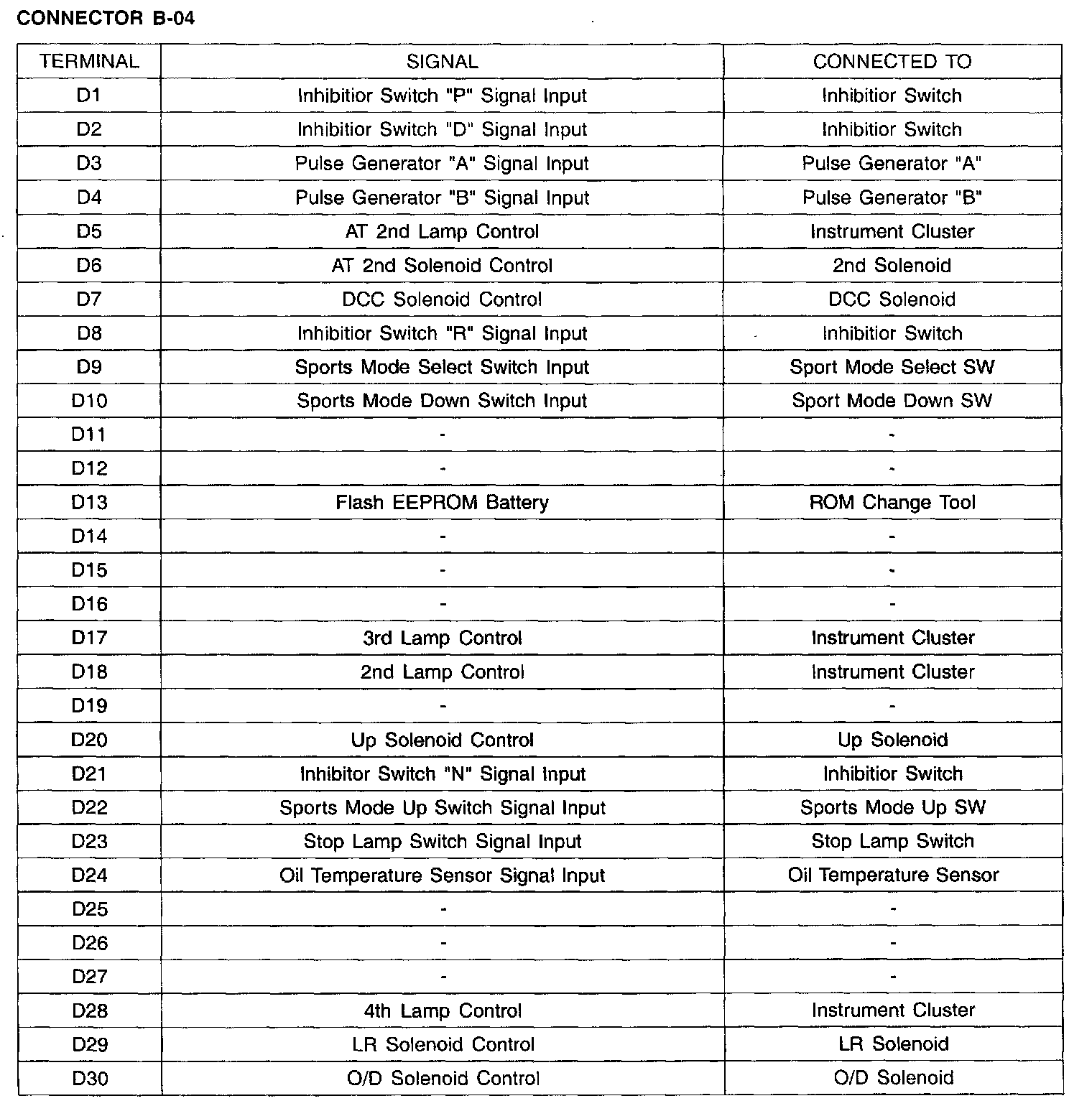

Connector B-04 (Ter. D1 - D30):
Connector B-04
