2005 Kia Optima EX, 2.4 6FACTORY OEM SERVICE PROCEDURE
Fuel Line: Installation

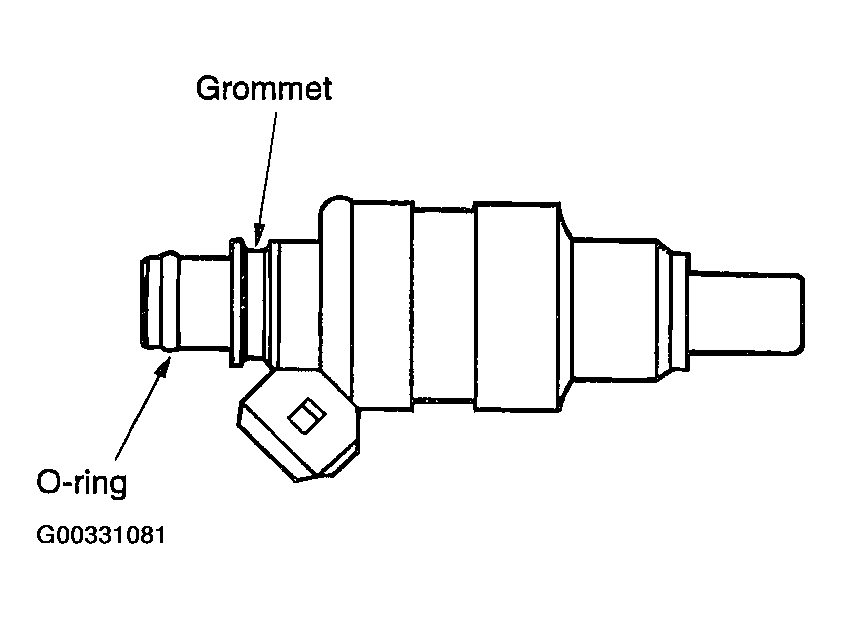

- Install a new grommet and O-ring to the injector.
- Apply a coating of solvent, spindle oil or gasoline to the injector O-ring.

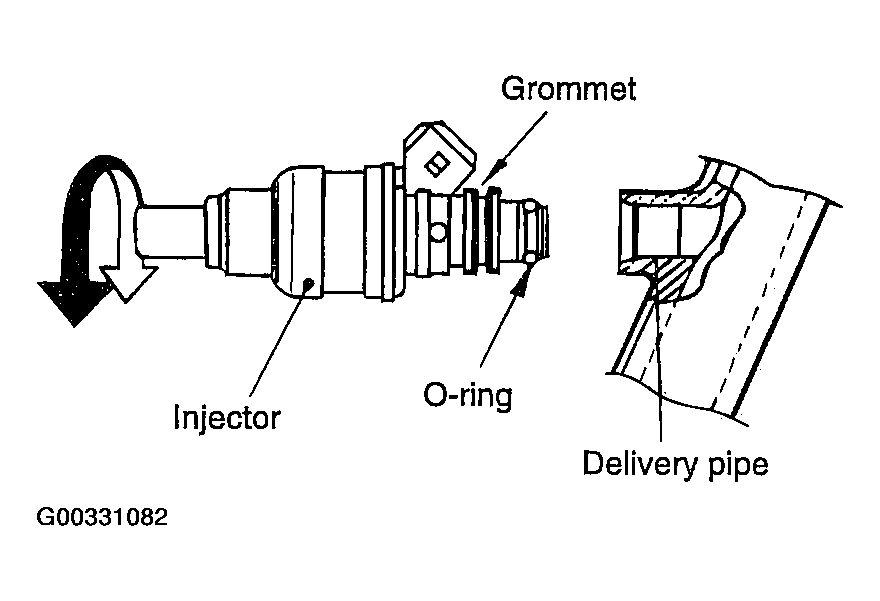

- While turning the injector to the left and right, install it on to the delivery pipe.
- Be sure the injector turns smoothly.NOTE: If injector does not turn smoothly, the O-ring may be jammed. Remove the injector and re-insert it into the delivery pipe and re-check.
