2005 Kia Optima EX, 2.4 6FACTORY OEM SERVICE PROCEDURE

System Description

The evaporative system is monitored by a pressure test. The canister close valve and fuel tank pressure sensor are used to close the system and observe tank pressure respectively.

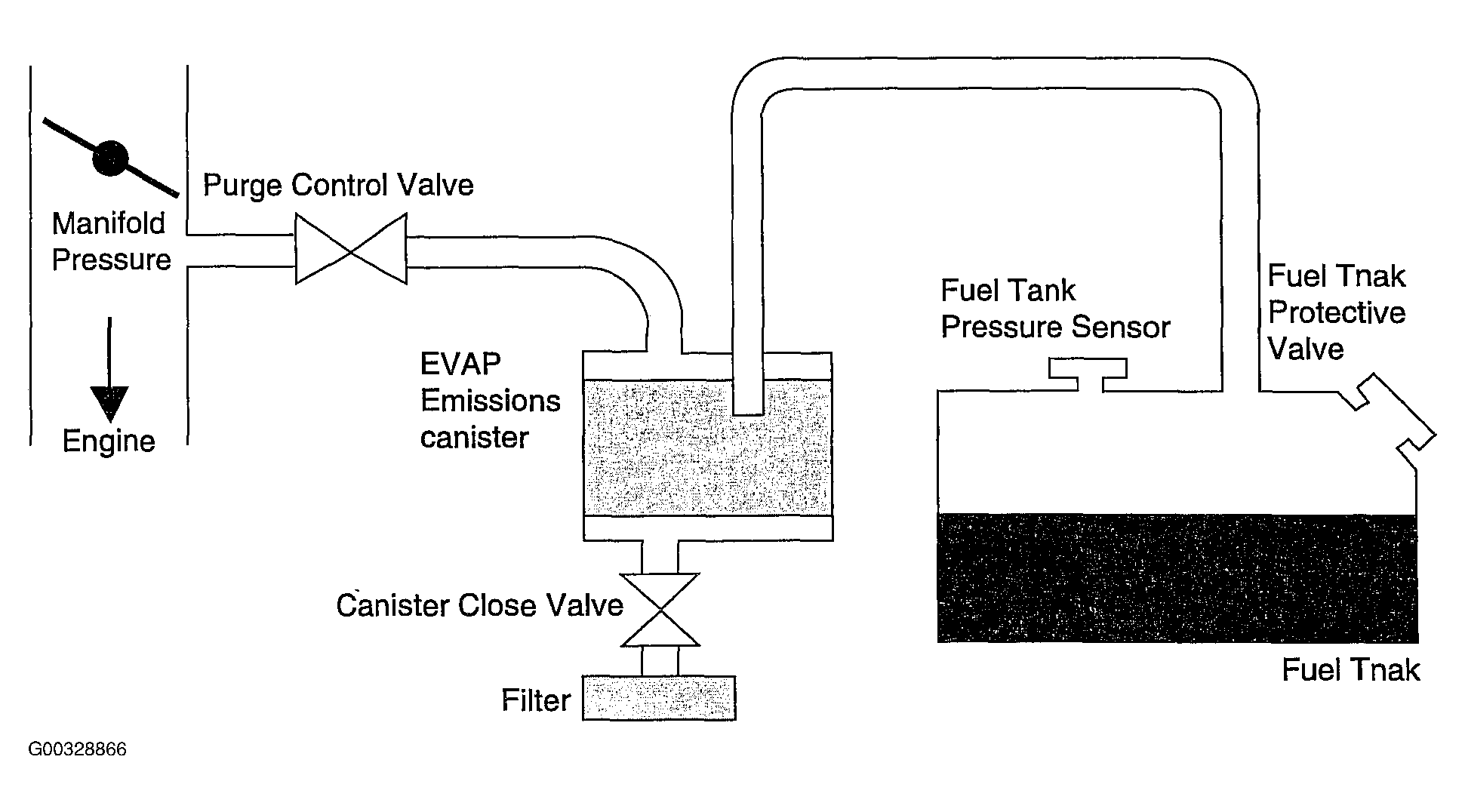

Fig 1: Identifying Evaporative Emission Control System Diagram

Courtesy of KIA MOTORS AMERICA, INC.
