2005 Kia Optima EX, 2.4 6FACTORY OEM SERVICE PROCEDURE

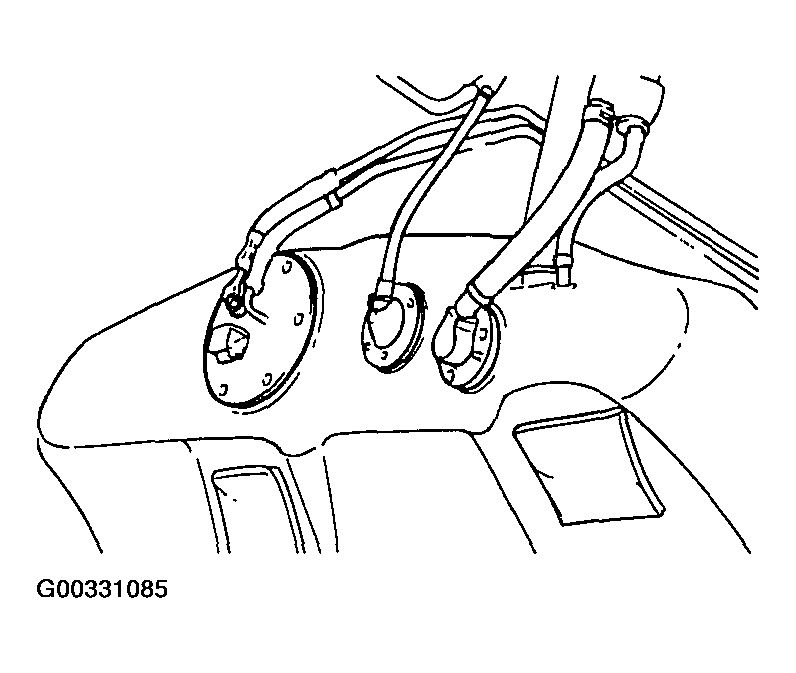

Fuel Sender Replacement
- Remove the fuel tank cap to lower the fuel tank's internal pressure.
- Open the trunk door and disconnect the fuel pump connector, remove the fuel feed and return line from the fuel pump assembly.
- Remove the fuel pump installation screws, then remove the fuel pump assembly from the fuel tank.
- Remove the fuel sender from the fuel pump assembly.
- Inspect and replace, if necessary.
