2005 Kia AmantiFACTORY OEM SERVICE PROCEDURE
Special Service Tools
SPECIAL SERVICE TOOLS DESCRIPTION
| Tool (Number and name) | Illustration | Application |
|---|---|---|

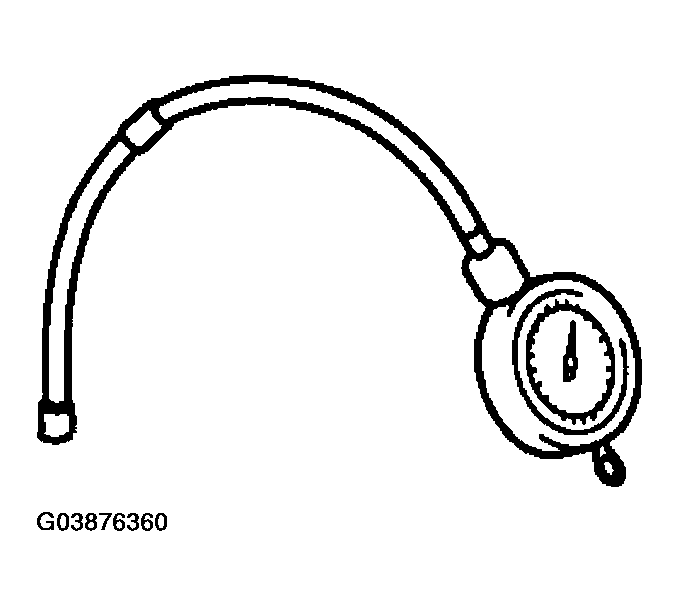

| 09353 - 24100 Fuel Pressure Gauge |
Fig 1 | Measuring the fuel line pressure |
| 09353 - 38000 Fuel Pressure Gauge Adapter |
Fig 2 | Connection between the delivery pipe and fuel feed line |
| 09353 - 24000 Fuel Pressure Gauge Connector |
Fig 3 | Connection between Fuel Pressure Gauge (09353 - 24100) and Fuel Pressure Gauge Adapter (09353 - 38000) |
