Throttle Position (TP) Sensor: Inspection
- Disconnect connector from throttle position sensor.

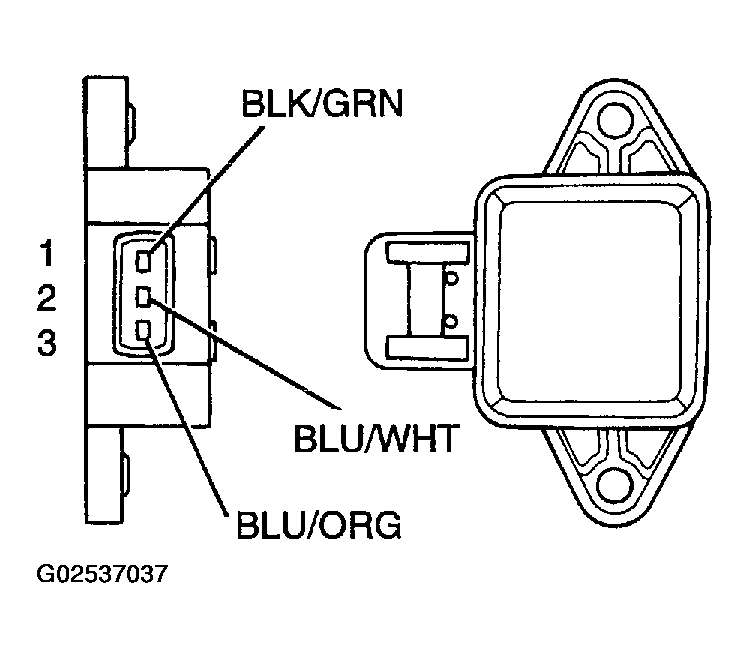

- Connect ohmmeter between sensor terminals 1 and 3.

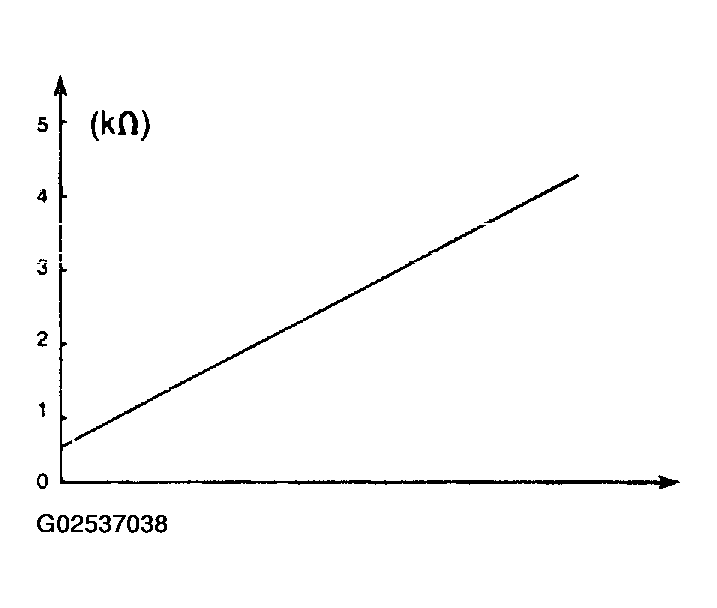

- Verify that resistance increases linearly according to throttle angle.
Specification: 2 kΞ© +/- 0.4 KΞ© (with throttle valve closed)Β
- If resistance is not as specified, replace the throttle position sensor.
- Connect throttle position sensor connector.
