2004 Kia Spectra Base, 1.8 1, AutomaticFACTORY OEM SERVICE PROCEDURE

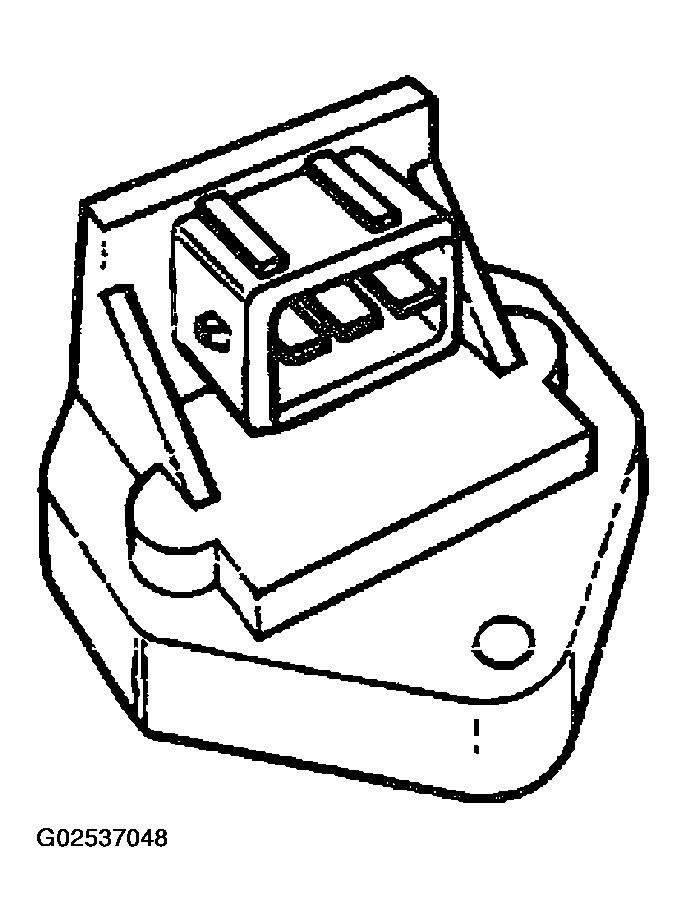

Chassis Acceleration Sensor: Inspection
- With component connector still connected, connect voltmeter between terminal 3 and ground.
- Turn ignition switch ON.
- Tap the chassis acceleration sensor bracket with wrench.
- Verify that voltage spike (less than 1V) is output from chassis acceleration sensor.
- If no voltage spike is observed, replace chassis acceleration sensor.
