2004 Kia AmantiFACTORY OEM SERVICE PROCEDURE

Initialization Procedure For The Throttle Body (ETS)

  1. ETS Motor must be initialized after performing the following operations because it is controlled regardless of sensor.
    1. Vehicle battery line OFF
    2. To replace the ETS Motor
    3. To replace the ETS Control Module
      CAUTION: When replacing the ETS Motor or ECU, delete the Diagnostic Trouble codes in ETS Control Module and ECU, then perform the initialization procedure below for the ETS Motor.
  2. Initializing the throttle body (ETS)
    1. Ignition off
    2. ETS relay ON (when communication is normal)
    3. The voltage learning (Closed Throttle of TPS #1) is done
    4. The voltage learning (Closed Throttle of TPS #2) is done
    5. The wiring of TPS #1 is not open or short circuit
    6. Feedback of throttle position is normal
    7. ETS Motor is normal
    8. Power supply of ETS Motor is normal
  3. Initializing Procedure
    1. Turn ignition switch OFF for 10 seconds to turn OFF the Control Relay.
    2. Turn ignition switch ON for 1 second and turn ignition switch OFF (Don't start the engine)
    3. Turn ignition switch OFF for 10 seconds to turn OFF the Control Relay.
    4. Turn ignition switch ON for 1 second. At that time EPROM remembers the value of the rotor position.
      1. Check the operation of throttle valve.
      2. To check whether the initialization procedure for ETS Motor is done or not, verify that the throttle valve operates proportional to the accelerator position when engine is running or ignition switch is ON.
      3. After ETS Motor has been initialized, it need not perform again even though battery line is disconnected because ETS Control Module uses the valve recorded in EPROM.

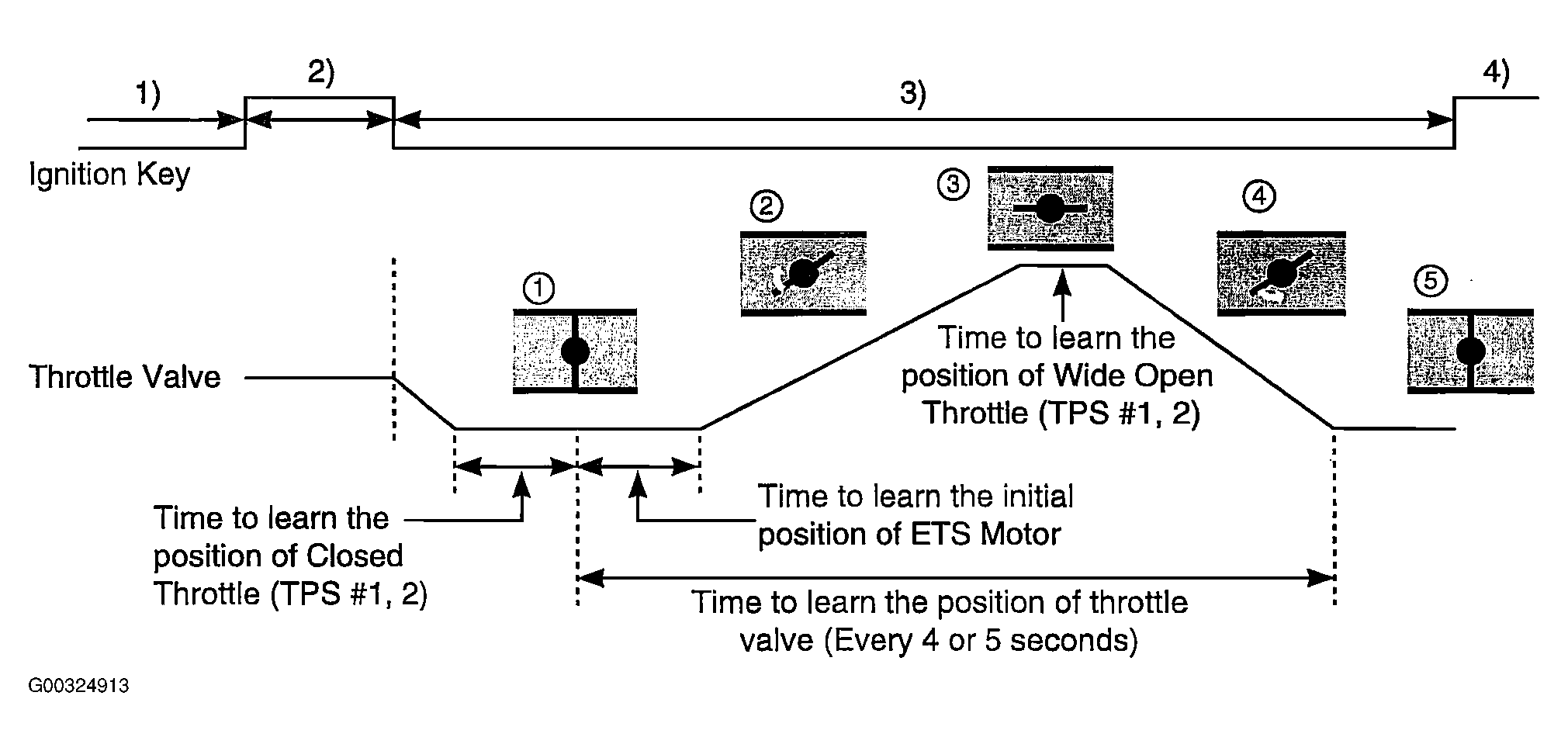

Fig 1: Throttle Body Learn Graph
G00324913Courtesy of KIA MOTORS AMERICA, INC.
