2004 Kia AmantiFACTORY OEM SERVICE PROCEDURE
Sensor Inspection

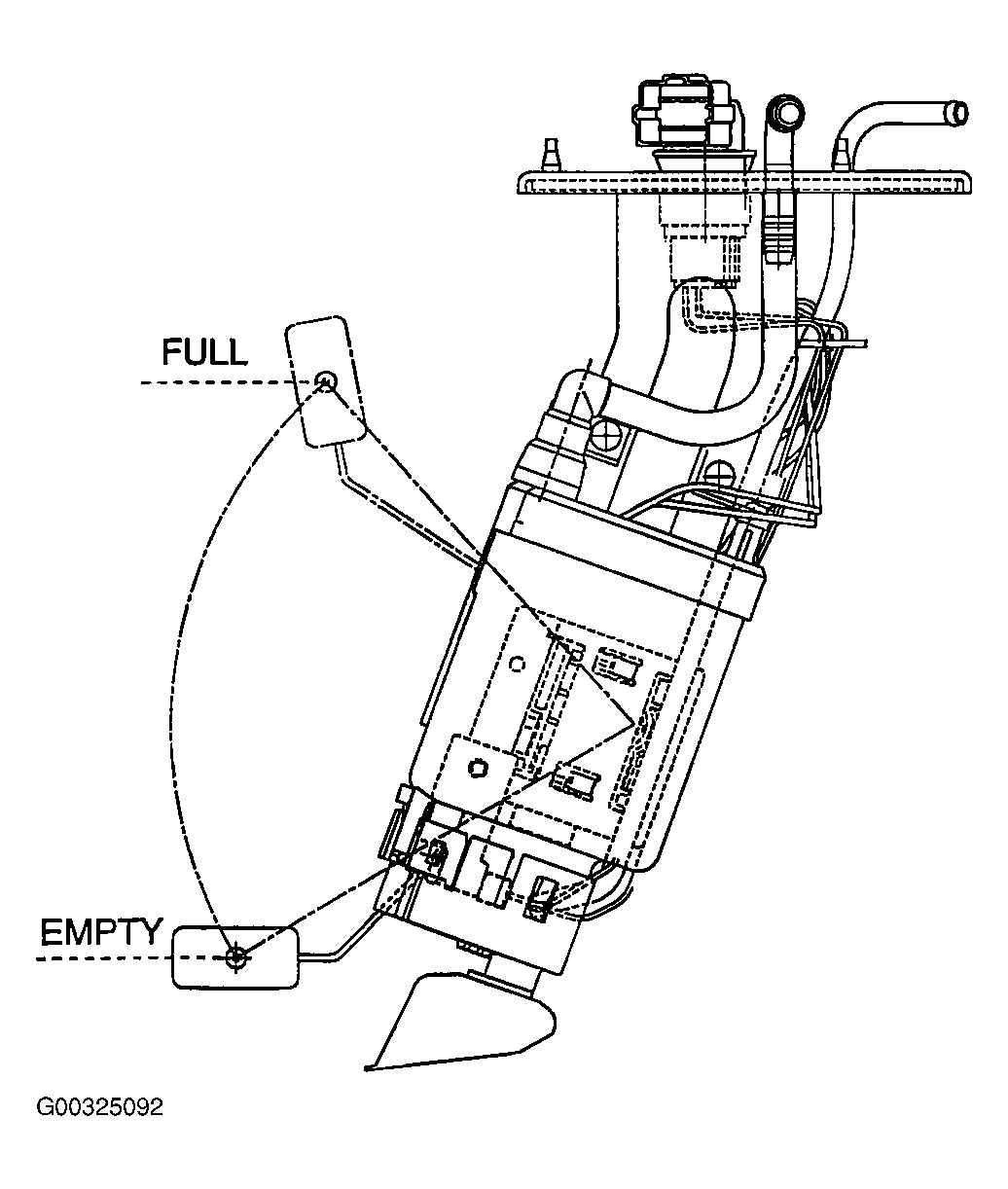

- Remove Fuel Pump Assembly from Fuel Tank.
- Measure the resistance from " FULL" to " EMPTY".

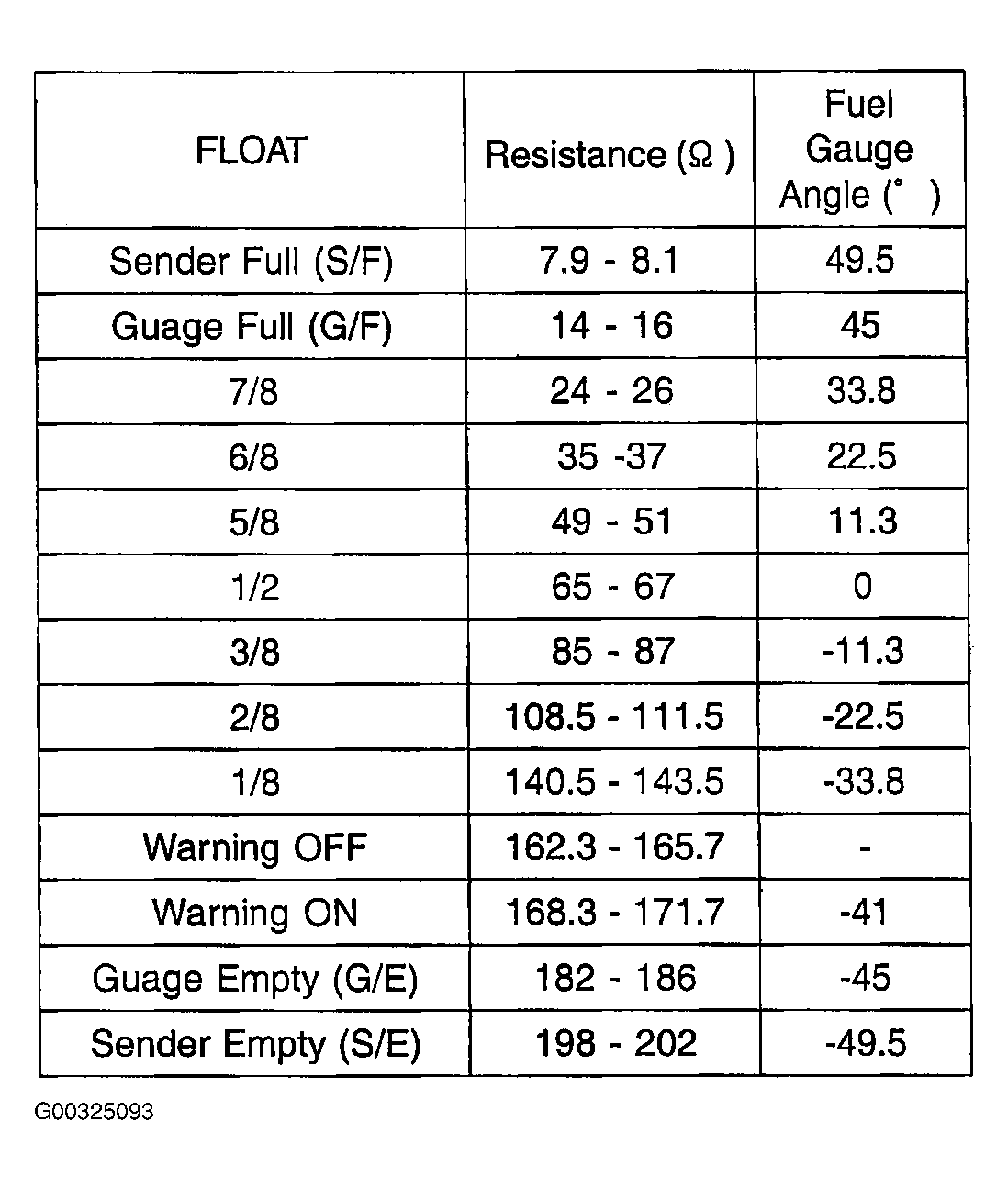

- Replace or repair the Fuel Level Sensor if the measured resistance is out of range as shown in illustration.
