Multi-Mode Keyless Entry Function
- Door lock function
If LOCK SW on RKE is pushed, LOCK data is sent to door module.
Door module controls the lock output.

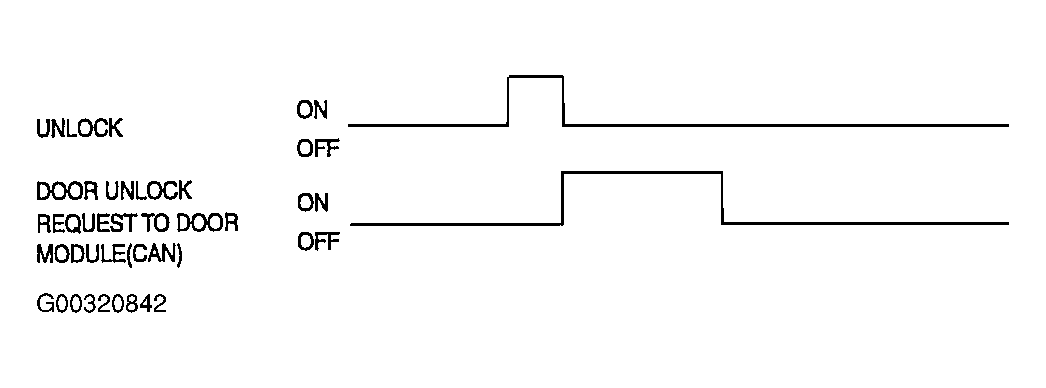

- Door unlock function
If unlock SW on RKE is pushed, unlock data is sent to door module.
Door module controls the unlock output.

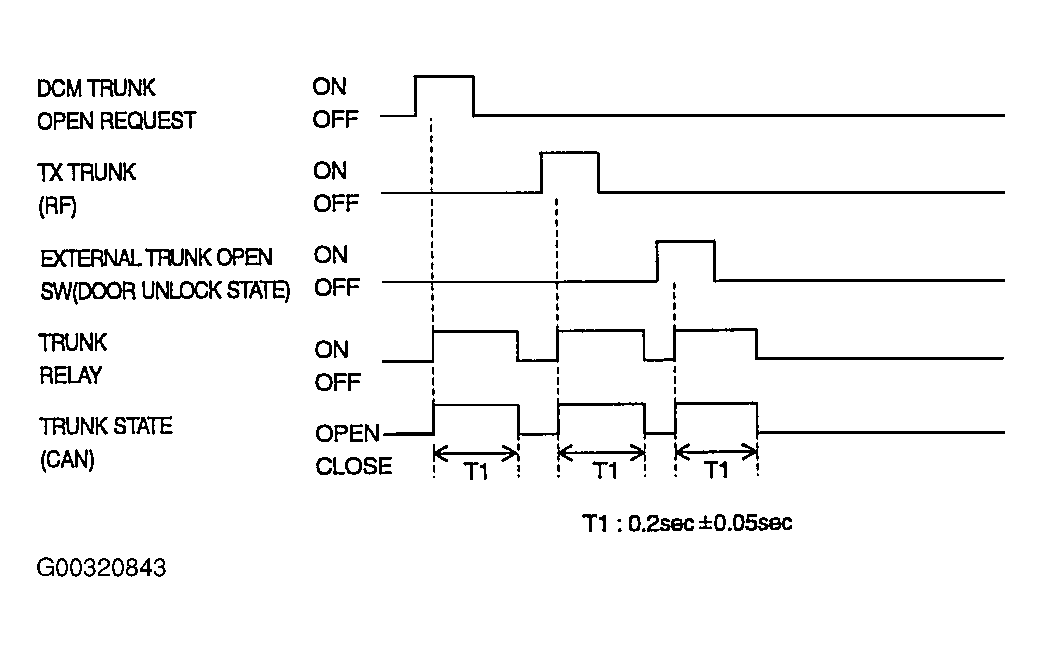

- Trunk open function
If the trunk open data frame has been received by BCM, the trunk open relay is driven for 0.2 second (Trunk release on time)
NOTE:- This function is inactivated state during trunk motor inhibition time on reset (default 0.2 second) after reset.
- If door is lock state, trunk can not be opened by external trunk open SW or trunk lid open SW
- During trunk open state, if the BCM receives the trunk release command via CAN, external trunk open SW, RKE than the BCM does not take trunk release action.
