2003 Kia Spectra L4-1.8LFACTORY OEM SERVICE PROCEDURE

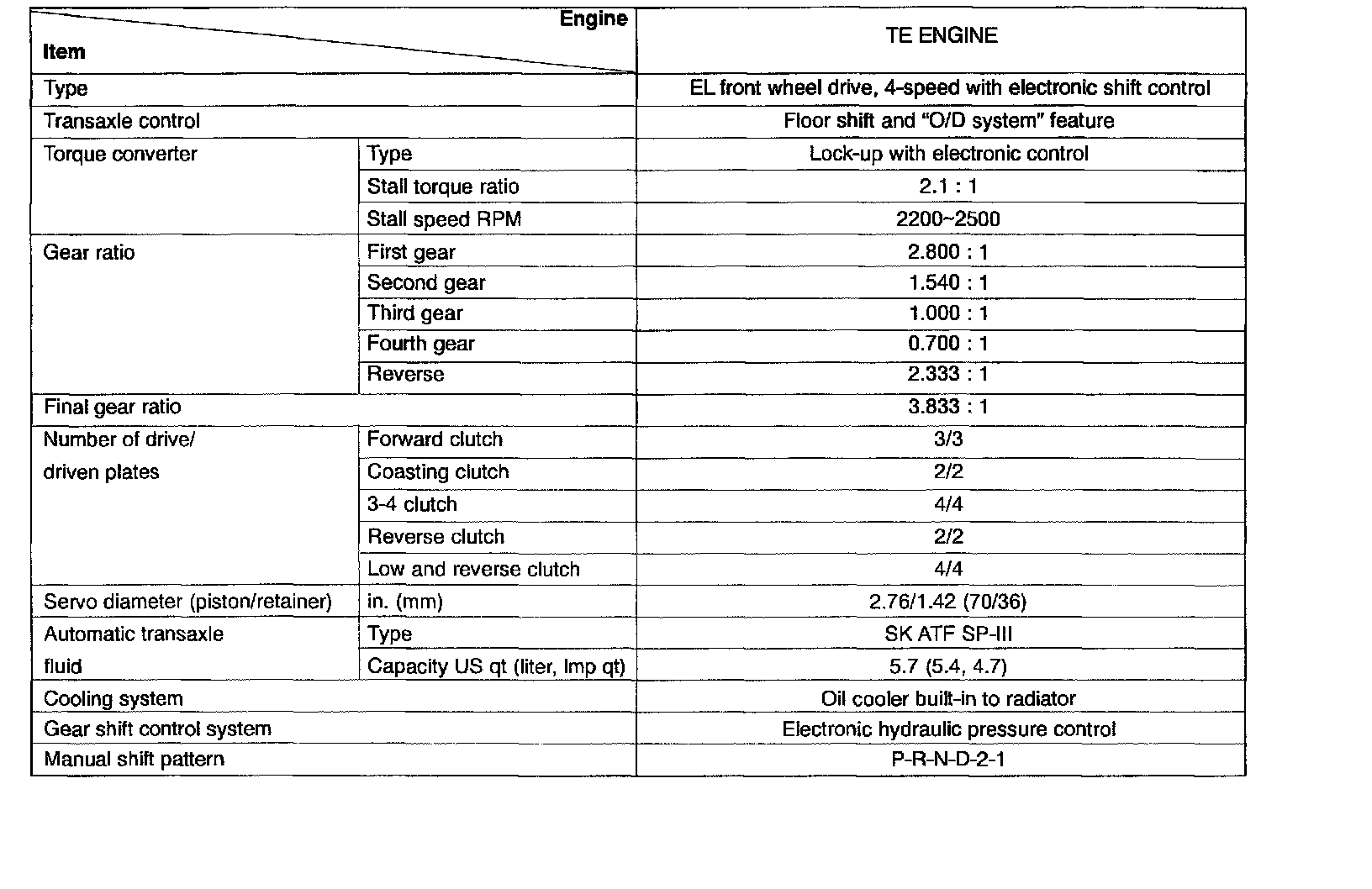

System Specifications
Specifications
Auto transaxle
Type El Front Wheel Drive, 4-Speed With Electronic Shift Control
Transaxle Control Floor Shift And "O/D System" Feature
Torque Converter
Type Lock-Up With Electronic Control
Stall Torque Ratio 2.1:1
Stall Speed RPM 2200 - 2500
Gear Ratio
First Gear 2.800:1
Second Gear 1.540:1
Third Gear 1.000:1
Fourth Gear 0.700:1
Reverse 2.333:1
Final Gear Ratio 3.833:1
Number Of Drive/Forward Driven Plates
Clutch 3/3
Coasting Clutch 2/2
3-4 Clutch 4/4
Reverse Clutch 2/2
Low And Reverse Clutch 4/4
Servo Diameter (Piston/Retainer) 2.76/1.42 mm (70/36 inch)
Automatic Transaxle Fluid
Type SK ATF SP-III
Capacity 5.7 US quarts (5.4 liters, 4.7 Imp quarts)
Cooling System Oil Cooler Built-In To Radiator
Gear Shift Control System Electronic Hydraulic Pressure Control
Manual Shift Pattern P-R-N-D-2-1
Automatic Transaxle Torque Specifications
Transmission Oil Pan 8.4 - 10.7 Nm (74.4 - 94.8 in. lb.)
Auto transaxle
Type El Front Wheel Drive, 4-Speed With Electronic Shift Control
Transaxle Control Floor Shift And "O/D System" Feature
Torque Converter
Type Lock-Up With Electronic Control
Stall Torque Ratio 2.1:1
Stall Speed RPM 2200 - 2500
Gear Ratio
First Gear 2.800:1
Second Gear 1.540:1
Third Gear 1.000:1
Fourth Gear 0.700:1
Reverse 2.333:1
Final Gear Ratio 3.833:1
Number Of Drive/Forward Driven Plates
Clutch 3/3
Coasting Clutch 2/2
3-4 Clutch 4/4
Reverse Clutch 2/2
Low And Reverse Clutch 4/4
Servo Diameter (Piston/Retainer) 2.76/1.42 mm (70/36 inch)
Automatic Transaxle Fluid
Type SK ATF SP-III
Capacity 5.7 US quarts (5.4 liters, 4.7 Imp quarts)
Cooling System Oil Cooler Built-In To Radiator
Gear Shift Control System Electronic Hydraulic Pressure Control
Manual Shift Pattern P-R-N-D-2-1
Automatic Transaxle Torque Specifications
Transmission Oil Pan 8.4 - 10.7 Nm (74.4 - 94.8 in. lb.)
