2003 Kia Spectra L4-1.8LFACTORY OEM SERVICE PROCEDURE
Oxygen Sensor: Testing and Inspection
INSPECTION OF TERMINAL VOLTAGE FOR FRONT & REAR HEATED OXYGEN SENSOR
1. Warm up the engine to normal operating temperature.
2. Run engine at idle speed.

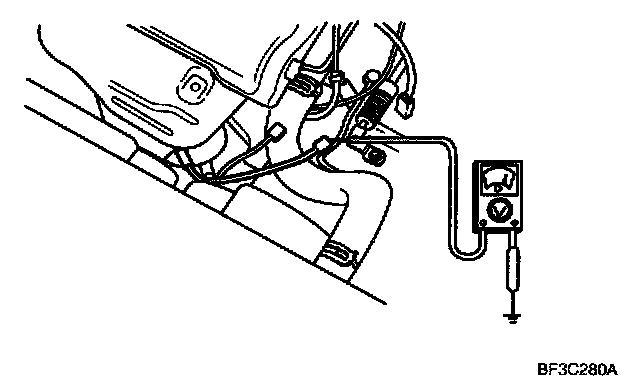

3. Connect a voltmeter between terminal 4 (GRN/BRN wire) and ground.
4. Increase and decrease engine speed quickly several times.
5. Verify that meter reading varies between 0 - 1.0 V.
NOTE: Rear oxygen sensor voltage does not fluctuate as quickly as front oxygen sensor.
6. If not as specified, inspect:
- On-board diagnostic system
- System inspection
- Intake manifold vacuum
- Fuel line pressure
7. If all systems are normal, replace the heated oxygen sensor.
INSPECTION OF FRONT & REAR HEATED OXYGEN SENSOR HEATERS
1. Ensure ignition switch is OFF.
2. Disconnect heated oxygen sensor connector.
3. Connect ohmmeter between terminals 1 and 3 and measure resistance.
Specification: Approx. 2 - 4 Ohm (68 °F {20 °C})
4. If not as specified, replace heated oxygen sensor.
Tightening Torque: 22 - 36 lb-ft (30 - 49 Nm, 3 - 5 kg-m)
5. Reconnect heated oxygen sensor connector.
1. Warm up the engine to normal operating temperature.
2. Run engine at idle speed.

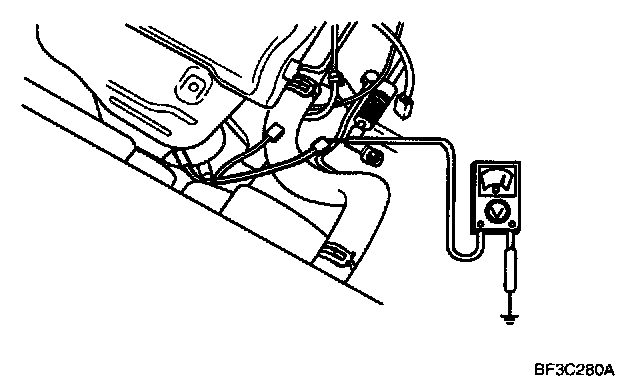

3. Connect a voltmeter between terminal 4 (GRN/BRN wire) and ground.
4. Increase and decrease engine speed quickly several times.
5. Verify that meter reading varies between 0 - 1.0 V.
NOTE: Rear oxygen sensor voltage does not fluctuate as quickly as front oxygen sensor.
6. If not as specified, inspect:
- On-board diagnostic system
- System inspection
- Intake manifold vacuum
- Fuel line pressure
7. If all systems are normal, replace the heated oxygen sensor.
INSPECTION OF FRONT & REAR HEATED OXYGEN SENSOR HEATERS
1. Ensure ignition switch is OFF.
2. Disconnect heated oxygen sensor connector.
3. Connect ohmmeter between terminals 1 and 3 and measure resistance.
Specification: Approx. 2 - 4 Ohm (68 °F {20 °C})
4. If not as specified, replace heated oxygen sensor.
Tightening Torque: 22 - 36 lb-ft (30 - 49 Nm, 3 - 5 kg-m)
5. Reconnect heated oxygen sensor connector.
