2003 Kia Spectra L4-1.8LFACTORY OEM SERVICE PROCEDURE
Control Assembly: Service and Repair
4 DOOR

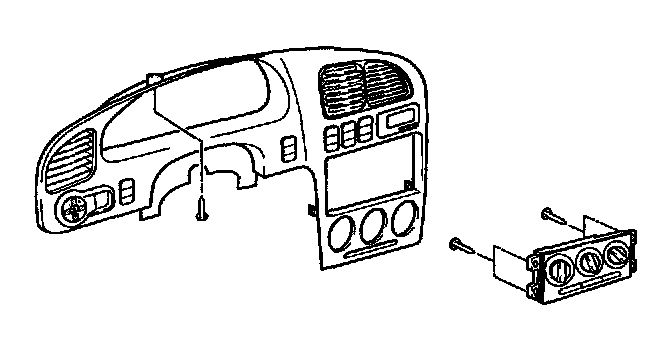

Ventilation control panel
Removal
1. Remove instrument cluster trim. Refer to "Instrument Cluster Trim".
2. Remove four mounting screws from rear of unit.
3. Remove ventilation control panel from mounting space.
4. Disconnect harness connector from rear of unit.
5. Remove ventilation control panel from instrument panel.
Installation
1. Mount ventilation control panel in position in instrument panel.
2. Connect harness connector to rear of ventilation control panel.
3. Mount ventilation control panel into position and install four mounting screws.
4. Install center panel trim. Refer to "Center Panel Trim".
Air Conditioner
Control panel
1. Remove instrument cluster trim.
2. Disconnect control connector.
3. Remove control panel from instrument cluster.
4. Install in reverse order of removal.
Ventilation control panel
Removal
1. Remove instrument cluster trim. Refer to "Instrument Cluster Trim".
2. Remove four mounting screws from rear of unit.
3. Remove ventilation control panel from mounting space.
4. Disconnect harness connector from rear of unit.
5. Remove ventilation control panel from instrument panel.
Installation
1. Mount ventilation control panel in position in instrument panel.
2. Connect harness connector to rear of ventilation control panel.
3. Mount ventilation control panel into position and install four mounting screws.
4. Install center panel trim. Refer to "Center Panel Trim".
Air Conditioner
Control panel
1. Remove instrument cluster trim.
2. Disconnect control connector.
3. Remove control panel from instrument cluster.
4. Install in reverse order of removal.
