Fuel Pump Relay Inspection
CHECK OPERATION
Listen for fuel pump relay clicking as ignition switch is turned ON.

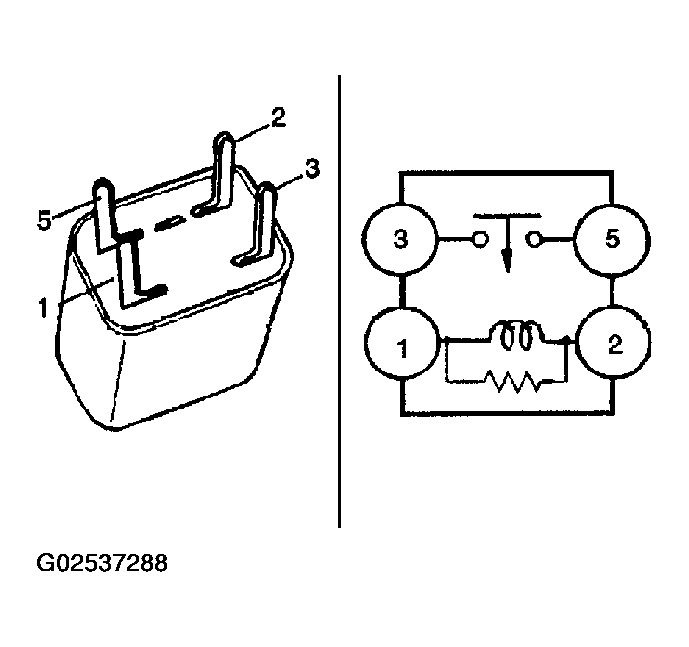

Continuity inspection
Check continuity between relay terminals.
B+: Battery positive voltage
| Terminal 1-2 | Terminal 3-5 |
|---|---|
| Apply B+ and ground | Continuity |
| B+ and ground not applied | No continuity |
