2003 Kia Spectra Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Repair and Diagnosis: Electrical: Starters: Overhaul: Starter: Disassembly
- Remove nut from "M" terminal.

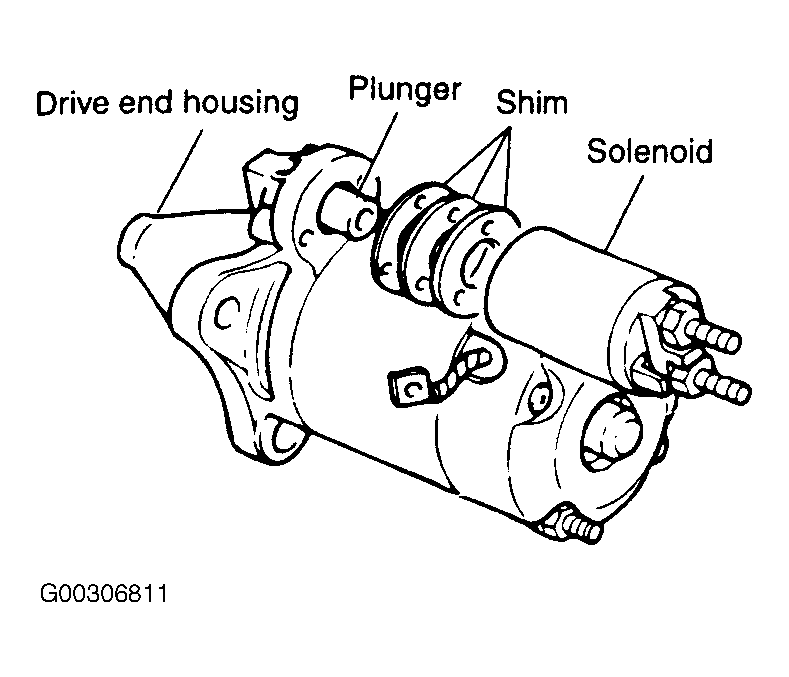

- Remove field wire from "M" terminal.NOTE: If pinion depth shims are found between solenoid and drive end housing, remove them and set aside. See Fig 1 .
- Remove solenoid screws and magnetic switch. See Fig 2 .
- Remove solenoid plunger spring. See Fig 3 .
- Disengage plunger from lever and remove plunger. See Fig 4 .
- Remove bolts from rear cover. See Fig 5 . Separate motor assembly from drive end housing. Also separate motor assembly from planetary gear set, if present.
- Remove lever from drive pinion. See Fig 6 .
- Drive stopper from snap ring using a deep well socket or similar tool.Fig 7 .
- Remove snap ring from its groove in pinion shaft.
- Remove stopper and drive pinion from pinion shaft. See Fig 8 .
- Remove two brush plate screws and rear cover. See Fig 9 .
- Remove armature from field coil housing.
- Remove armature gaskets from the end of the armature.
