2003 Kia Spectra Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Armature Test

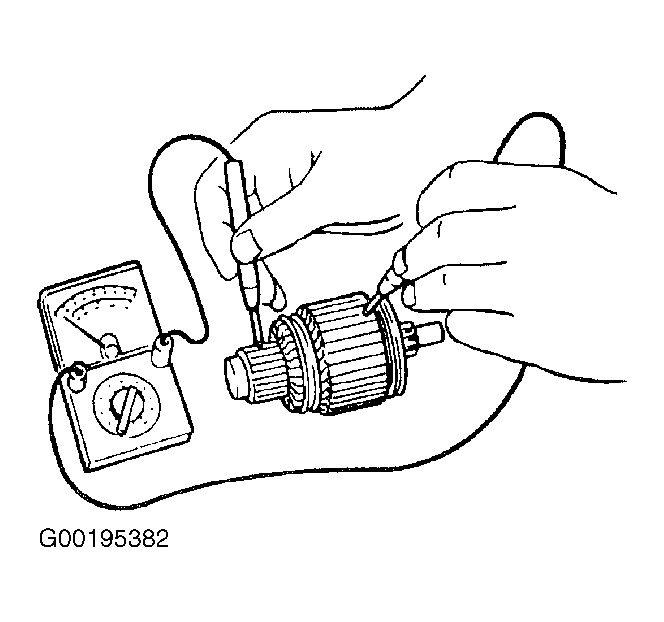

- Using ohmmeter, check continuity between commutator and core. See Fig 1 . If continuity exists, replace armature.
- Check continuity between commutator and shaft. See Fig 2 . If continuity exists, replace armature.
- Place armature on "V" blocks. Using a dial indicator, measure runout at commutator. If runout is not within specification, repair armature with a lathe or replace armature. See Fig 3 .
- Measure diameter of commutator. See Fig 4 . Replace armature if diameter of commutator is at, or less than, grind limit. See TORQUE SPECIFICATIONS .
- If commutator surface is dirty, wipe it with a cloth; if it is rough, repair it with a lathe or fine sandpaper.
- Check depth of mold between commutator segments. Replace armature if depth of mold is at, or less than minimum. See Fig 5 . See STARTER SPECIFICATIONS .
