2003 Kia Spectra Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Charging Systems: General: Generator: Removal
- Remove negative battery cable.

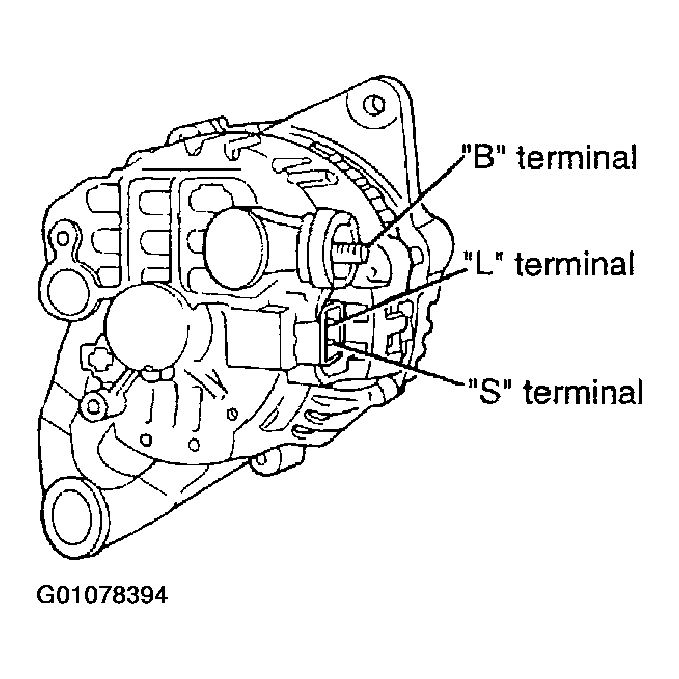

- Open B terminal cover cap.
- Remove B terminal nut.
- Remove B terminal lead.
- Disconnect generator L and S terminal connectors.

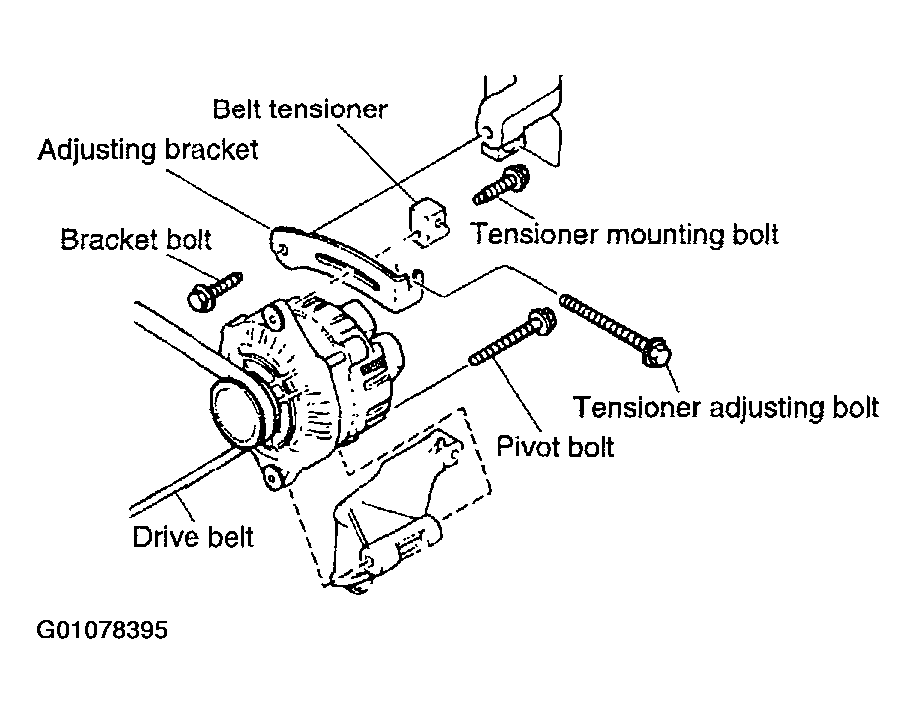

- Loosen pivot bolt and tensioner mounting bolt. Do not remove.
- Relieve tension on drive belt by rotating adjustment bolt.
- Remove drive belt from generator pulley.
- Remove tensioner mounting bolt and belt tensioner.
- Remove generator pivot bolt.
- Loosen bolt at base of adjusting bracket and rotate the bracket up.
- Lift generator from engine compartment.
