2003 Kia Rio Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Jacking & Hoisting
NOTE:
Jack points may be used for either floor jack or two-post hoist. When using hoist, use jack points on both sides.

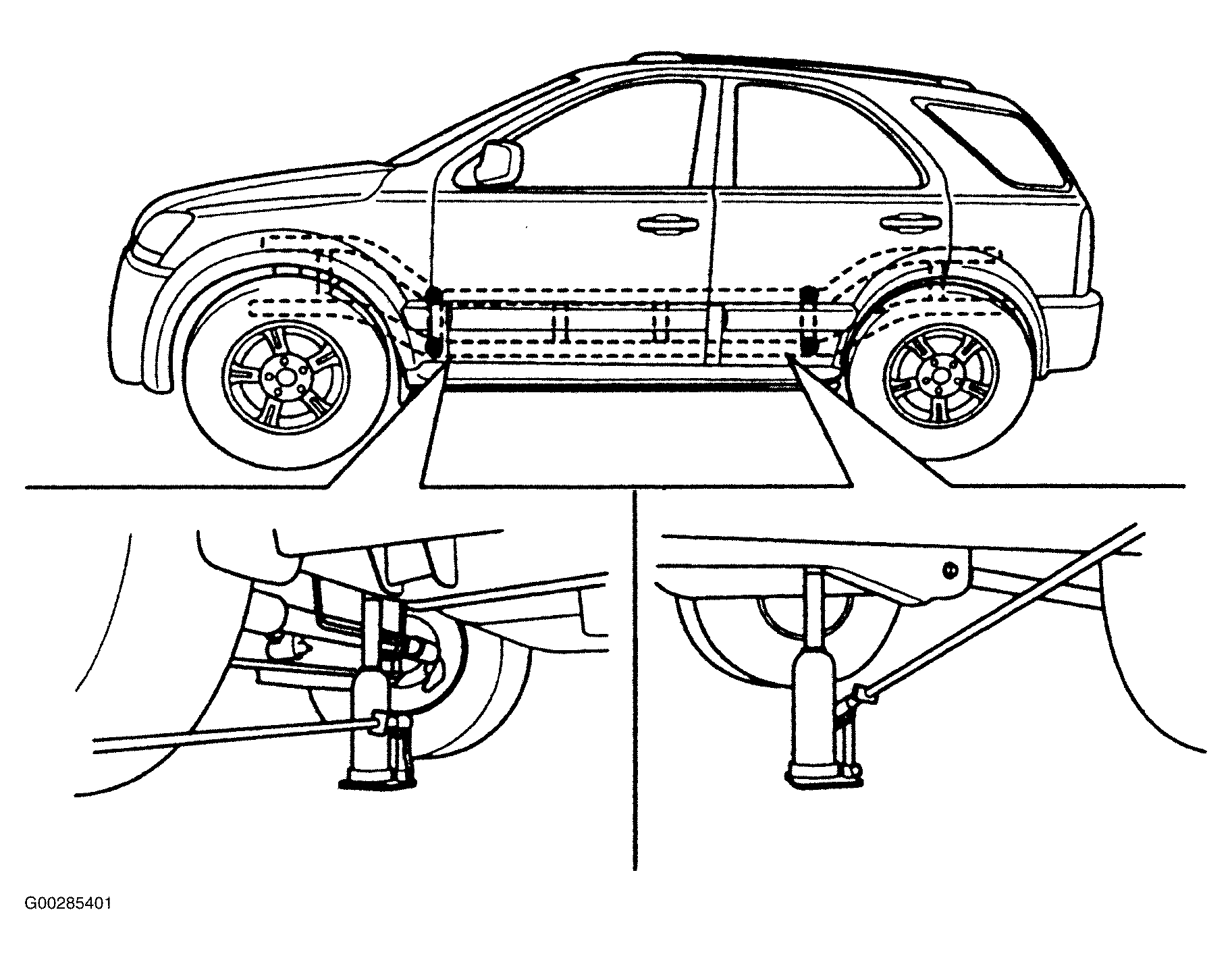

Two jack points exist on each side of vehicle. See Fig 1 . Front jack points are located at outboard end of transmission crossmember on the frame. Rear jack points are located at lower control arm bracket on the frame.
