2003 Kia Optima V6-2.7LFACTORY OEM SERVICE PROCEDURE
Engine Control Module

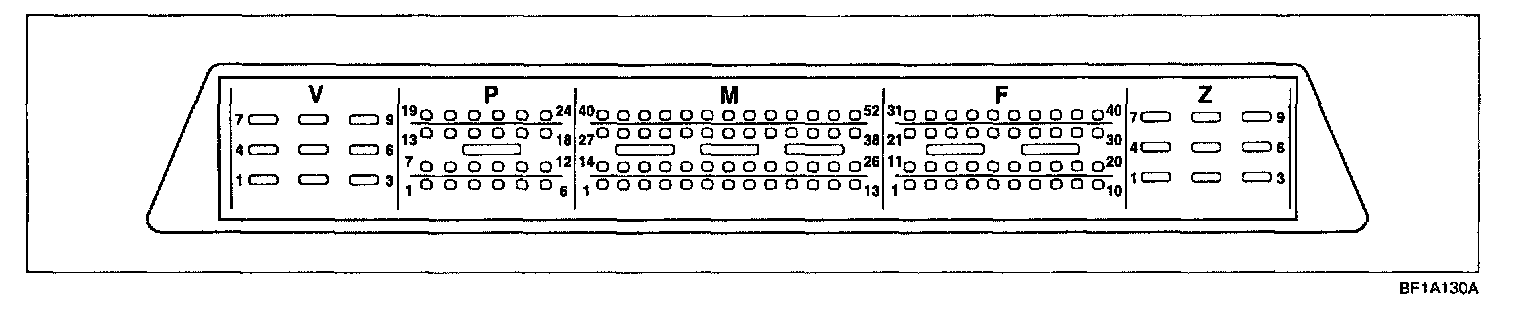

ECM Terminal Layout Pinouts:
ECM Terminal Layout Pinouts With TCM

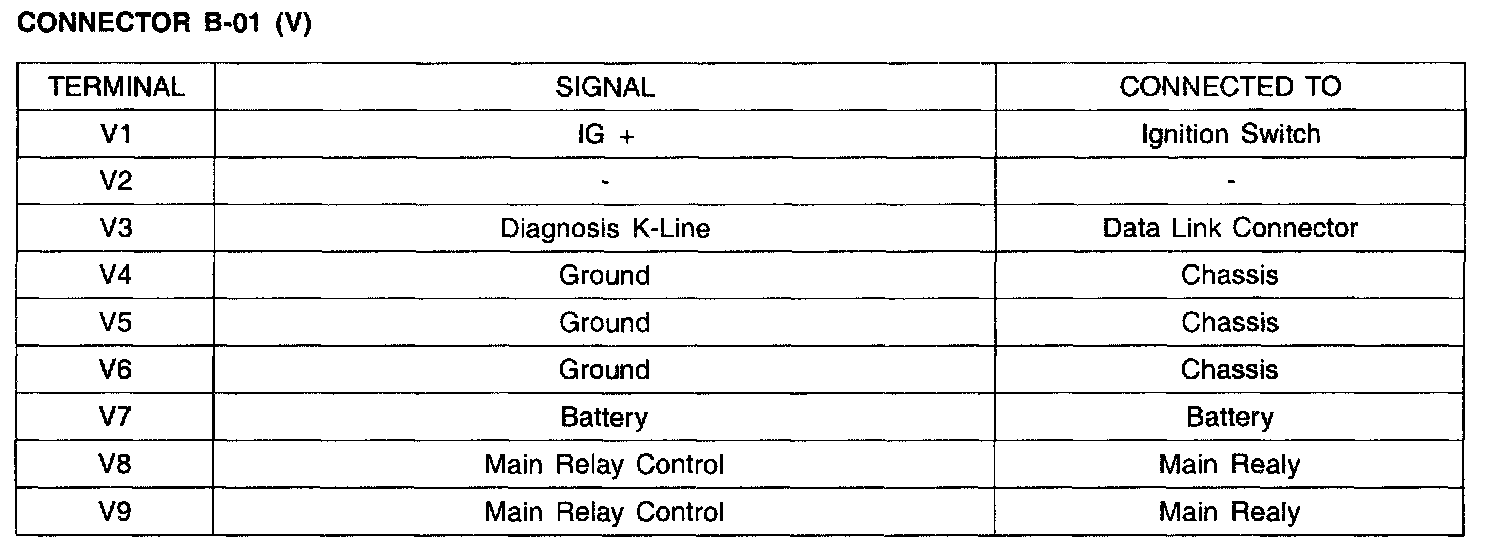

Connector B-01 (V) (Ter. V1 - V9):
Connector B-01 (V)

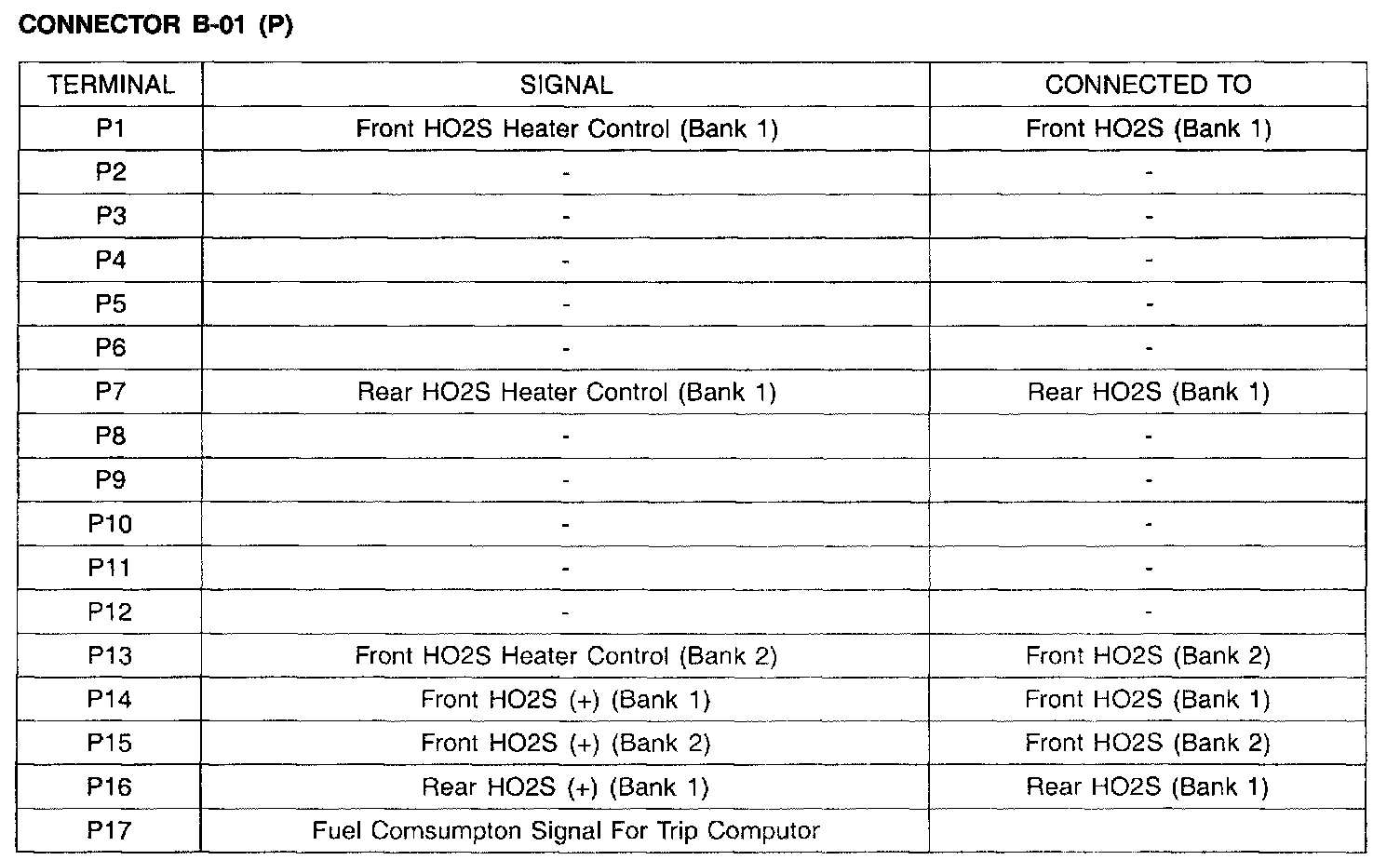

Connector B-01 (P) (Ter. P1 - P17):

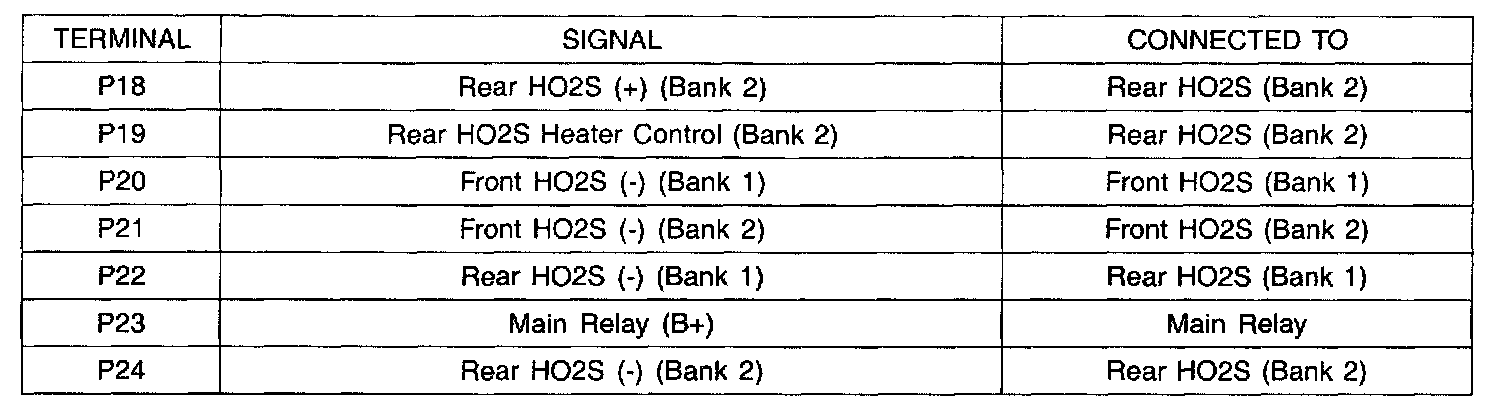

Connector B-01 (P) (Ter. P18 - P24):
Connector B-01 (P)
Connector B-01 (M) (Ter. M1 - M29):
Connector B-01 (M) (Ter. M30 - M52):
Connector B-01 (M)

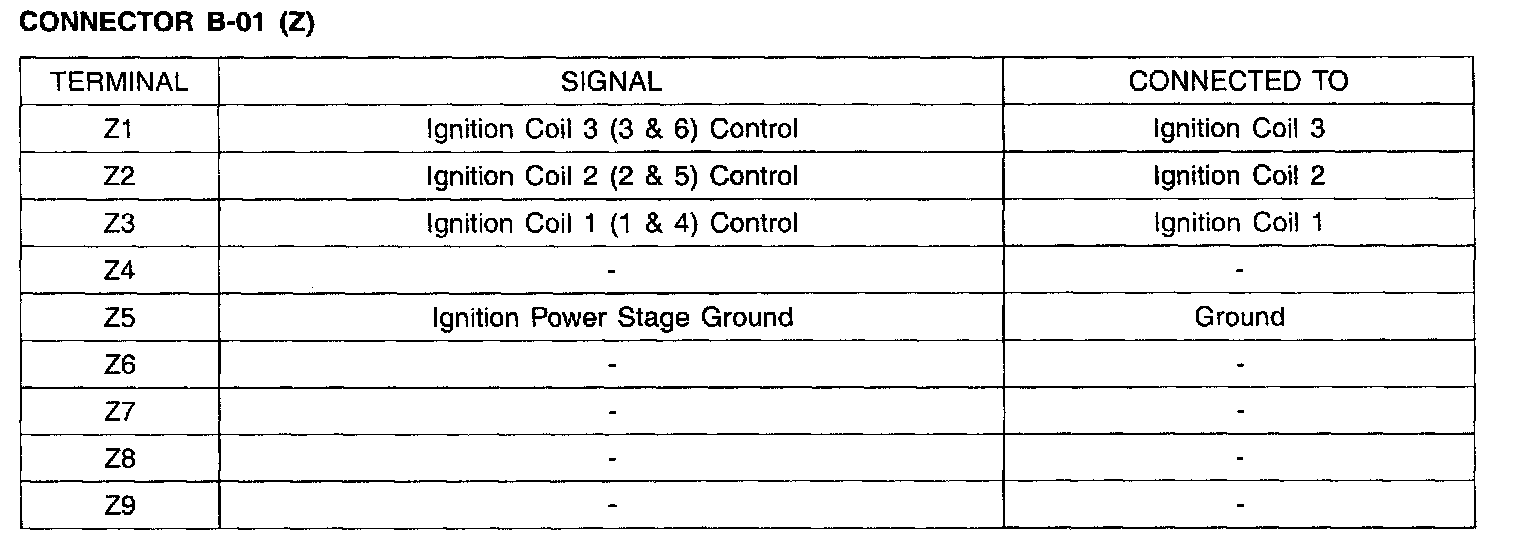

Connector B-01 (Z) (Ter. Z1 - Z9):
Connector B-01 (Z)

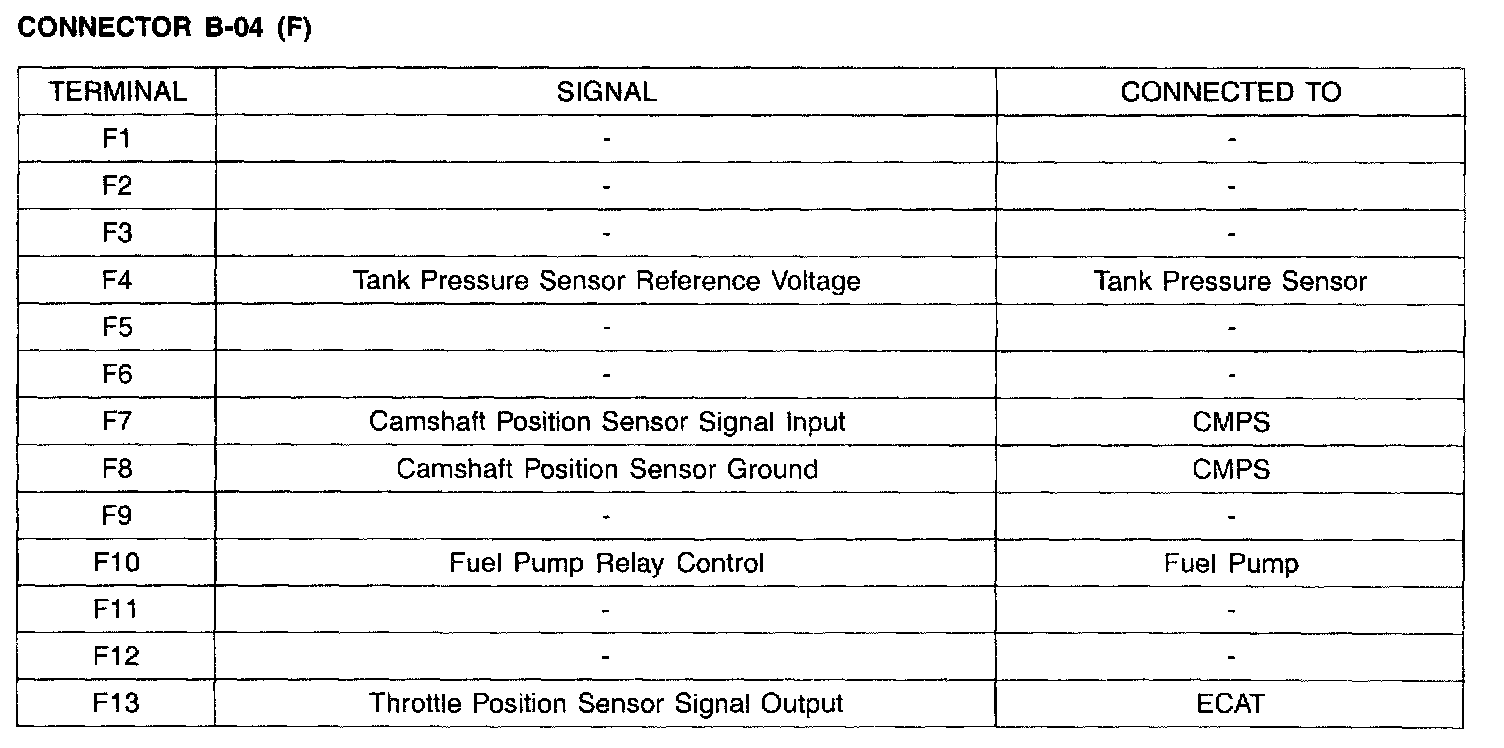

Connector B-04 (F) (Ter. F1 - F13):

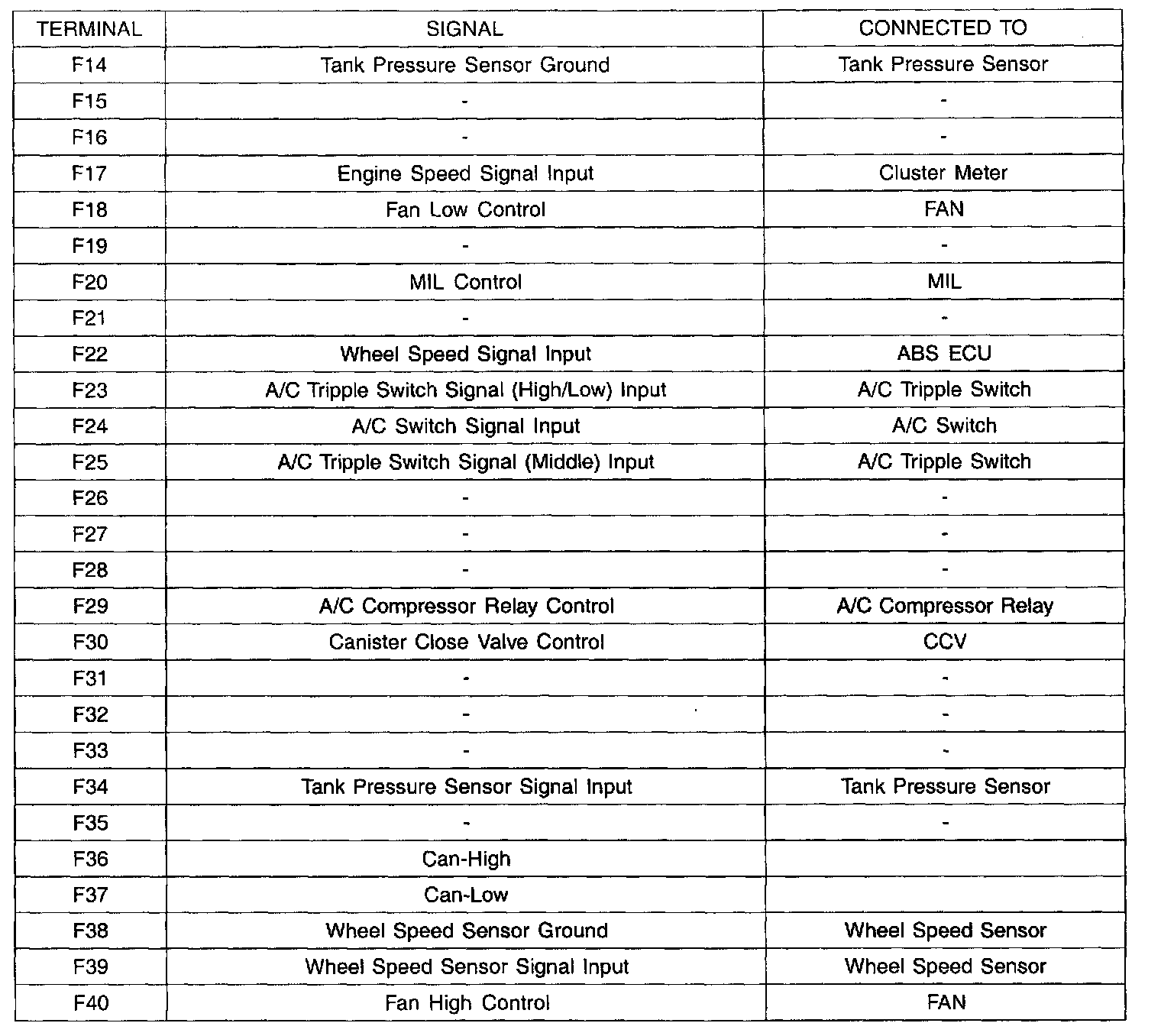

Connector B-04 (F) (Ter. F14 - F40):
Connector B-04 (F)
