2003 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
Power Window Switch: Testing and Inspection

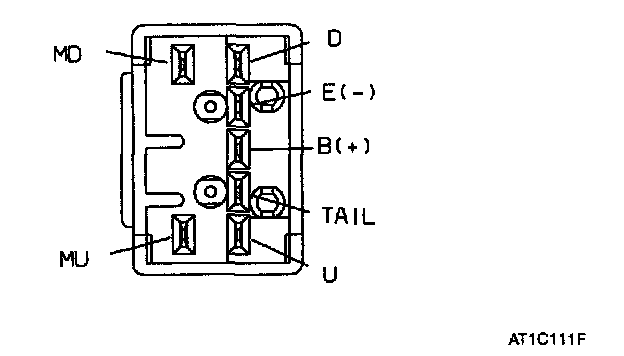

POWER WINDOW MAIN SWITCH
1. Remove the switch from the door trim panel.

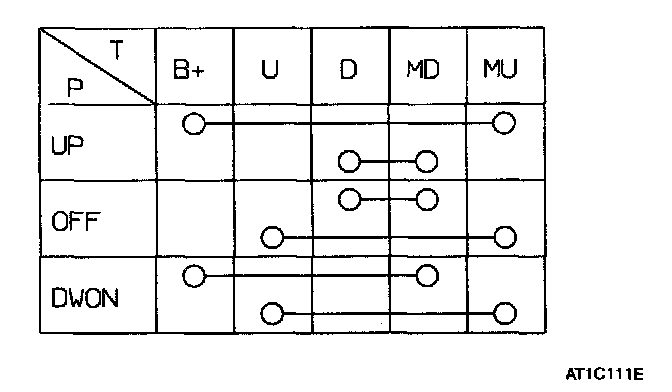

2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.

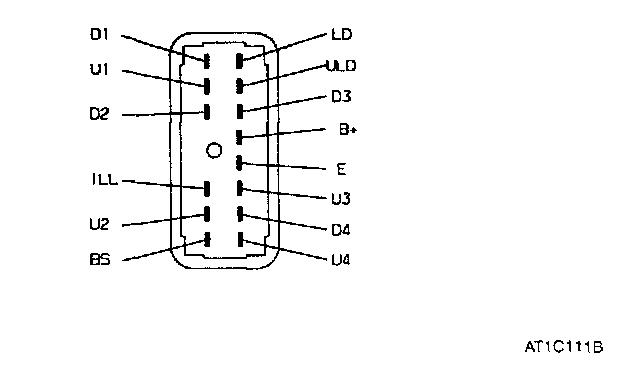

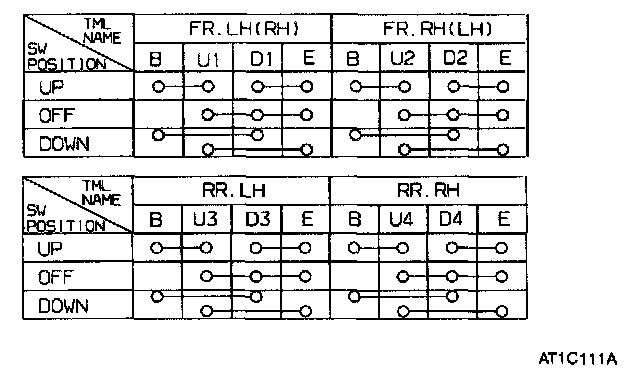

POWER WINDOW SUB SWITCH

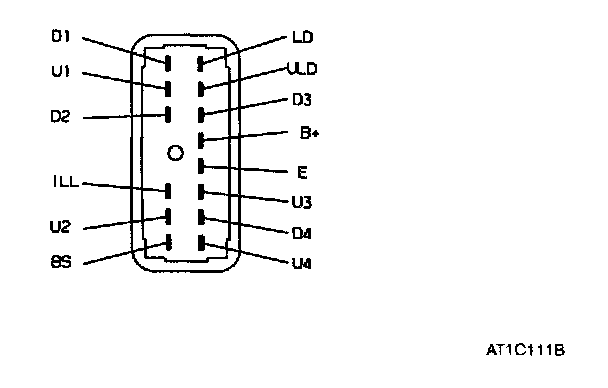

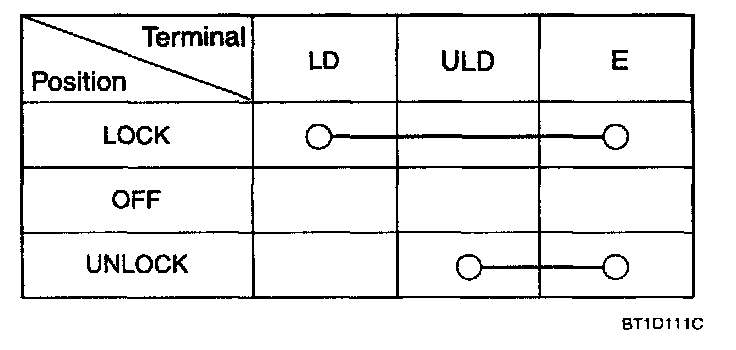

DOOR LOCK SWITCH
1. Remove the switch from the door trim panel.
2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.
POWER WINDOW SUB SWITCH
DOOR LOCK SWITCH
