2003 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
General Specifications

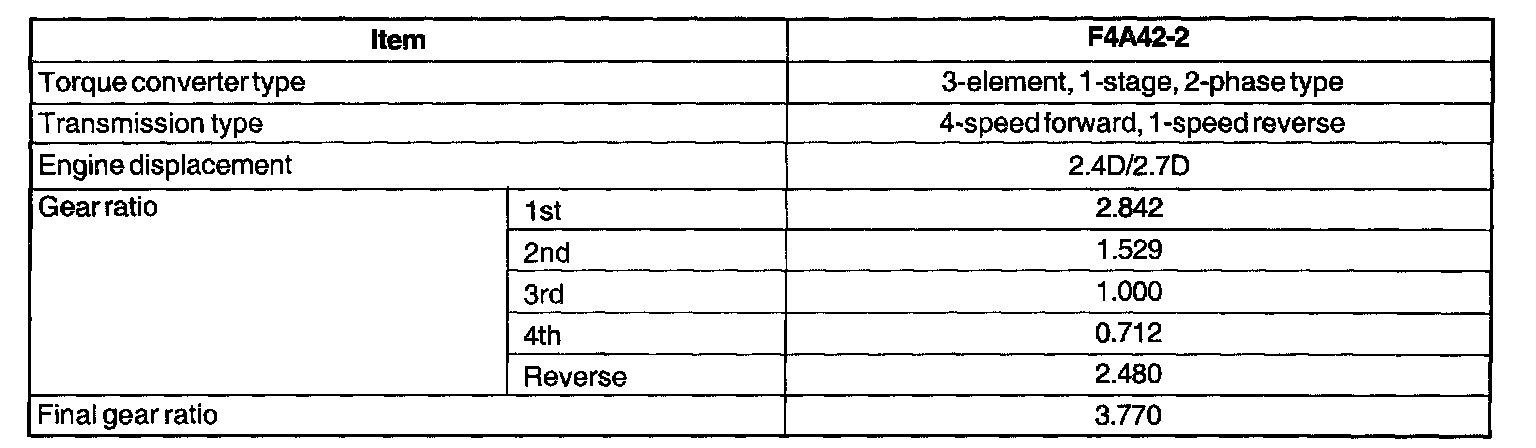

GENERAL SPECIFICATIONS
Torque converter type 3-element, 1 -stage, 2-phase type
Transmission type 4-speed forward 1 -speed reverse
Engine displacement 2.4D/2.7D
Gear ratio
1st 2.842
2nd 1.529
3rd 1.000
4th 0.712
Reverse 2.480
Final gear ratio 3.770
SERVICE SPECIFICATIONS
Output shaft preload 0.01-0.09 mm
Brake reaction plate end play 0-0.1 6 mm
Low-reverse brake end play 1.65-2.11 mm (F4A42-2)
Second brake end play 0.79-1.25 mm
Underdrive sun gear end play 0.25-0.45 mm
Input shaft end play 0.70-1.45 mm
Differential case preload 0.045-0.105 mm
Underdrive clutch end play 1.6-1.8 rpm
Reverse and overdrive clutch return spring end play 0-0.09 mm
Overdrive clutch end play 1.6-1.8 mm
Reverse clutch end play 1.5-1.7 mm
Backlash between differential side gear and pinion 0.025-0.150 mm

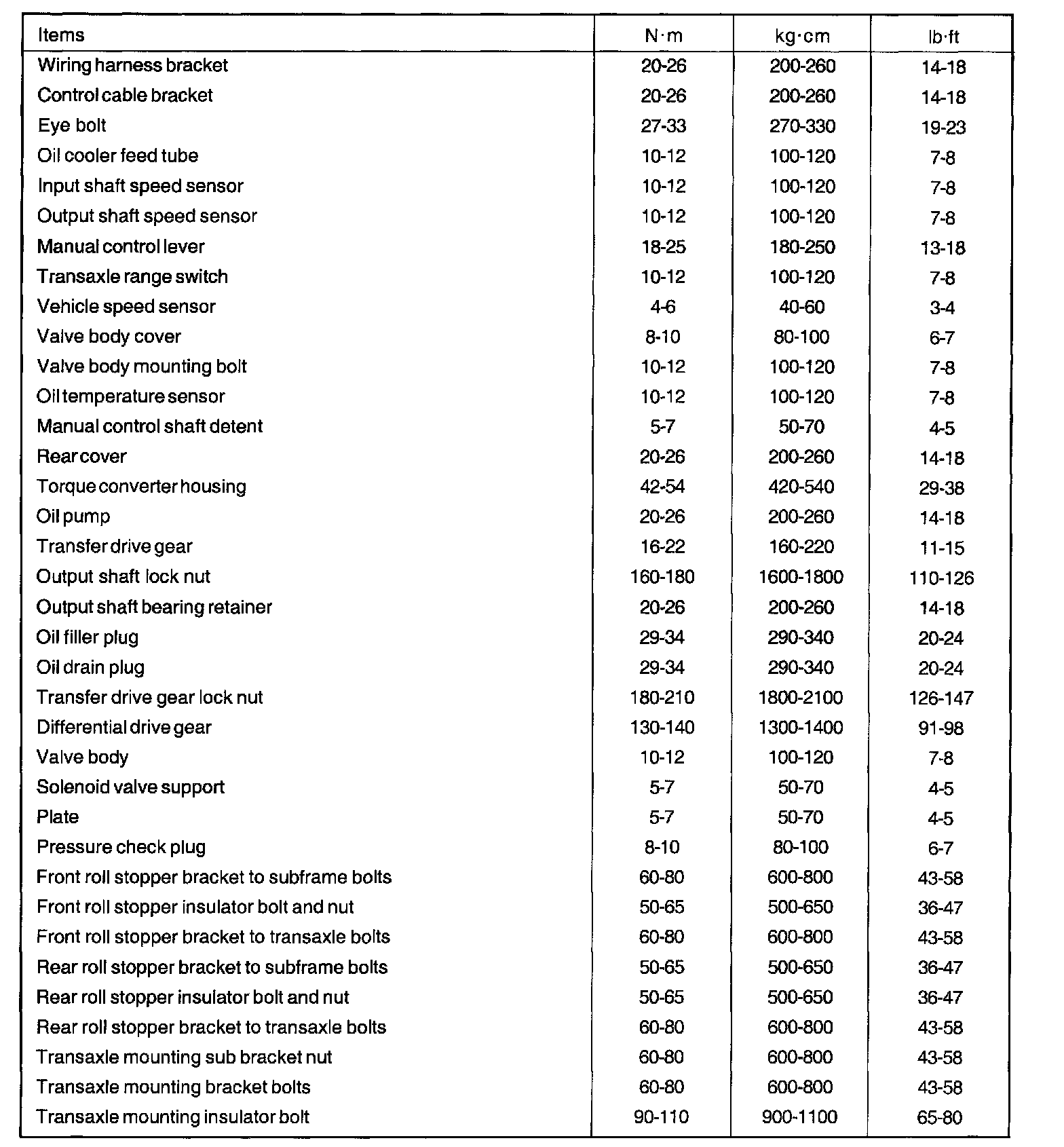

TIGHTENING TORQUE
WARNING: Always follow torque tightening levels. Failure to follow such levels can result in parts breaking if over-tightened or loosening if under-tightened. In either case, serious personal injury or death could result to the vehicle occupants.
Torque converter type 3-element, 1 -stage, 2-phase type
Transmission type 4-speed forward 1 -speed reverse
Engine displacement 2.4D/2.7D
Gear ratio
1st 2.842
2nd 1.529
3rd 1.000
4th 0.712
Reverse 2.480
Final gear ratio 3.770
SERVICE SPECIFICATIONS
Output shaft preload 0.01-0.09 mm
Brake reaction plate end play 0-0.1 6 mm
Low-reverse brake end play 1.65-2.11 mm (F4A42-2)
Second brake end play 0.79-1.25 mm
Underdrive sun gear end play 0.25-0.45 mm
Input shaft end play 0.70-1.45 mm
Differential case preload 0.045-0.105 mm
Underdrive clutch end play 1.6-1.8 rpm
Reverse and overdrive clutch return spring end play 0-0.09 mm
Overdrive clutch end play 1.6-1.8 mm
Reverse clutch end play 1.5-1.7 mm
Backlash between differential side gear and pinion 0.025-0.150 mm
TIGHTENING TORQUE
WARNING: Always follow torque tightening levels. Failure to follow such levels can result in parts breaking if over-tightened or loosening if under-tightened. In either case, serious personal injury or death could result to the vehicle occupants.
