2003 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
Throttle Position Sensor: Adjustments
THROTTLE POSITION SENSOR (TPS) ADJUSTMENT
1. Connect a HI-SCAN to the data link connector.

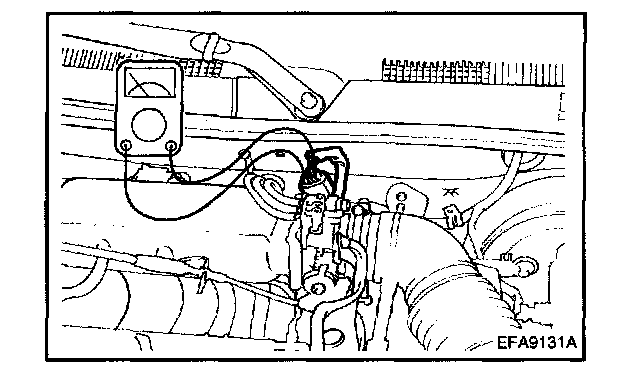

2. If a HI-SCAN is not used, connect a digital type voltmeter between connector 1 and 3.
3. Turn the ignition switch to the ON position (do not start engine) and check that the TP Sensor output voltage is as specified. If a HI-SCAN is used, read the voltage.
Standard value : 300 - 900 mV

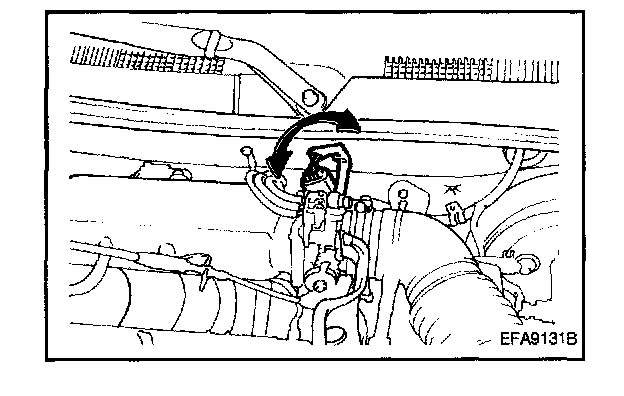

4. If it is out of specification, loosen TP Sensor mounting screws and adjust by turning the TP Sensor.
NOTE:
- Turning the TP Sensor clockwise increases the output voltage.
- Tighten the screws securely after adjustment.
5. Turn the ignition switch to the OFF position.

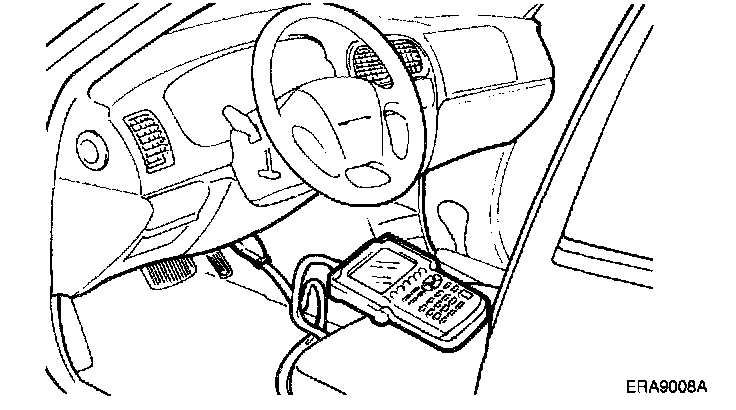

Data Link Connector:
1. Connect a HI-SCAN to the data link connector.
2. If a HI-SCAN is not used, connect a digital type voltmeter between connector 1 and 3.
3. Turn the ignition switch to the ON position (do not start engine) and check that the TP Sensor output voltage is as specified. If a HI-SCAN is used, read the voltage.
Standard value : 300 - 900 mV
4. If it is out of specification, loosen TP Sensor mounting screws and adjust by turning the TP Sensor.
NOTE:
- Turning the TP Sensor clockwise increases the output voltage.
- Tighten the screws securely after adjustment.
5. Turn the ignition switch to the OFF position.
