2003 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
Manifold Pressure/Vacuum Sensor: Testing and Inspection
MANIFOLD ABSOLUTE PRESSURE SENSOR (MAP) SENSOR
The manifold differential pressure (MAP) sensor converts intake manifold pressure into a voltage signal. The engine control module (ECM) uses this signal to determine the condition of the exhaust gas recirculation (EGR).
TROUBLESHOOTING HINTS
The MIL (Malfunction Indicator Lamp) is ON or the DTC (Diagnostic Trouble Code) is displayed on the HI-SCAN under the following conditions;
1. When the manifold pressure is 4.5 V or more for 4 second.
2. When the manifold pressure is 0.2 V or lower for 4 second.
SENSOR INSPECTION [MAP SENSOR]
1. Connect the voltmeter between 1 and 4 of MAP sensor connector.
Terminal 1 : MAP sensor ground
Terminal 4 : MAP sensor output

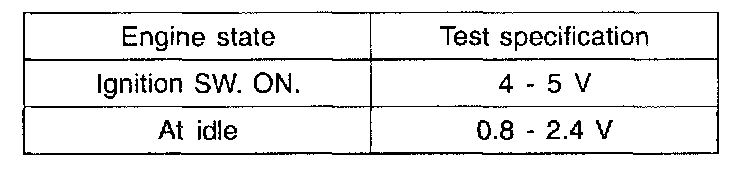

2. Measure the voltage of terminals.
3. If the voltage deviates from the standard value, replace the MAP sensor assembly.
HARNESS INSPECTION PROCEDURE
The manifold differential pressure (MAP) sensor converts intake manifold pressure into a voltage signal. The engine control module (ECM) uses this signal to determine the condition of the exhaust gas recirculation (EGR).

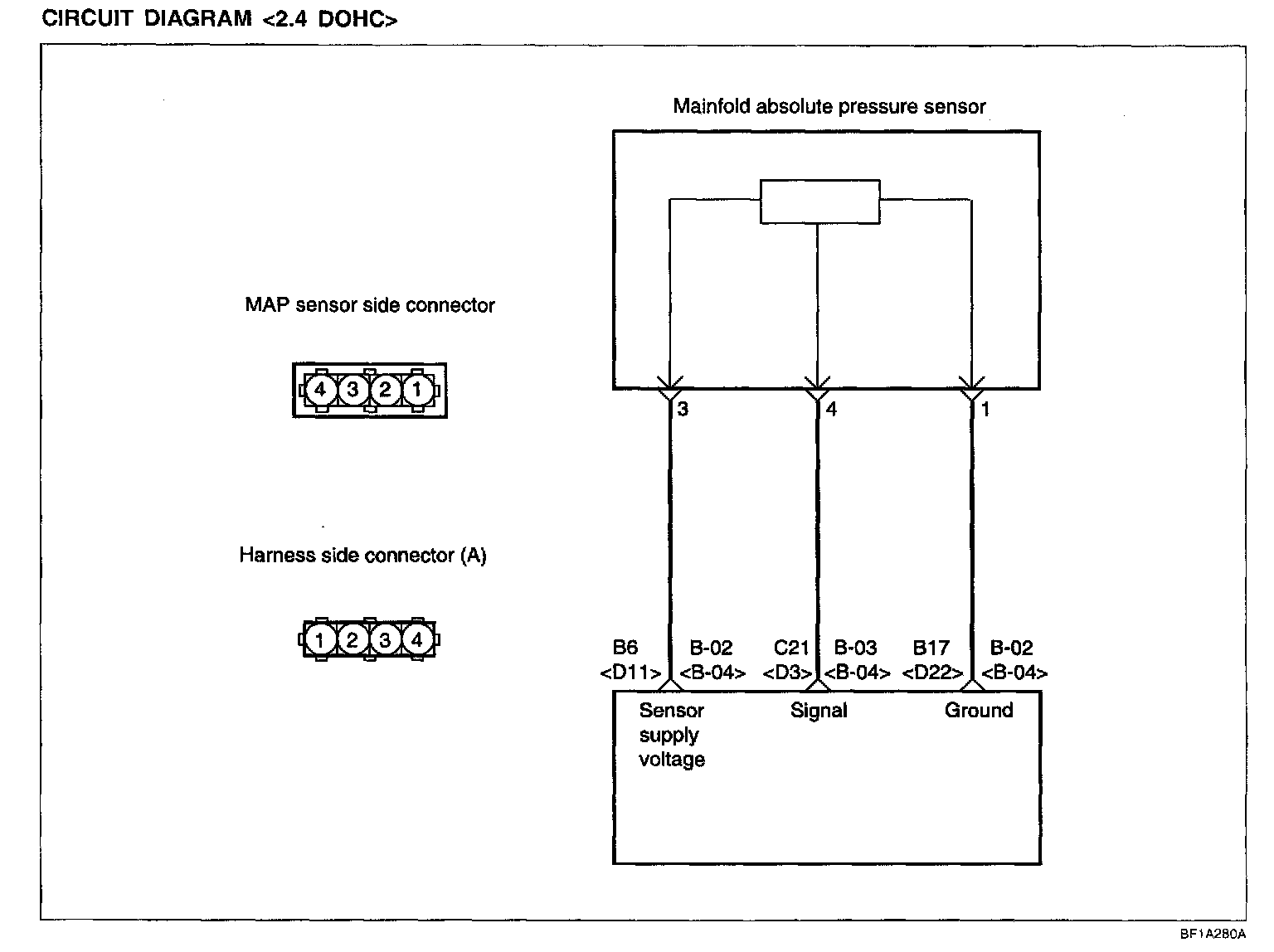

Circuit Diagram <2.4 DOHC>:

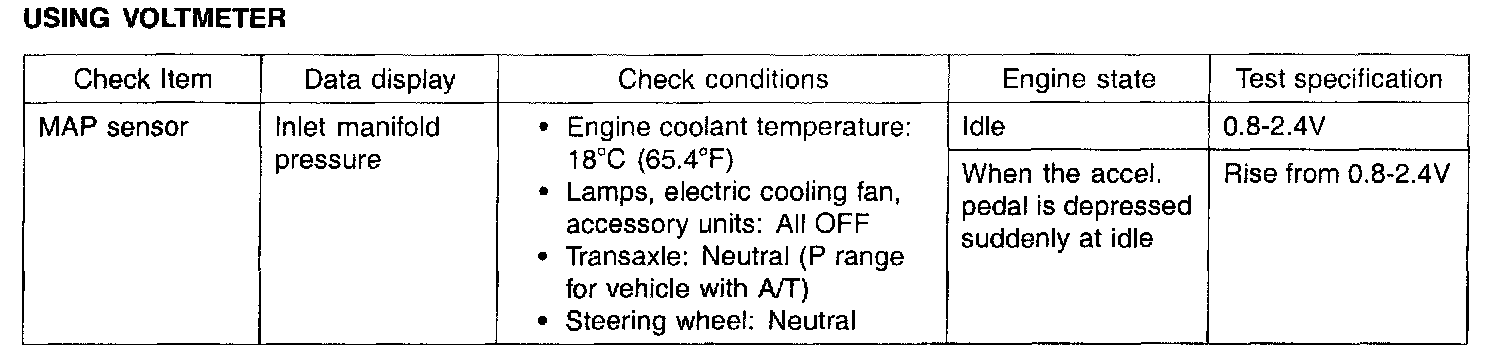

Using Voltmeter:
Troubleshooting Procedures (MAP Sensor):
TROUBLESHOOTING HINTS
The MIL (Malfunction Indicator Lamp) is ON or the DTC (Diagnostic Trouble Code) is displayed on the HI-SCAN under the following conditions;
1. When the manifold pressure is 4.5 V or more for 4 second.
2. When the manifold pressure is 0.2 V or lower for 4 second.
SENSOR INSPECTION [MAP SENSOR]
1. Connect the voltmeter between 1 and 4 of MAP sensor connector.
Terminal 1 : MAP sensor ground
Terminal 4 : MAP sensor output
2. Measure the voltage of terminals.
3. If the voltage deviates from the standard value, replace the MAP sensor assembly.
HARNESS INSPECTION PROCEDURE

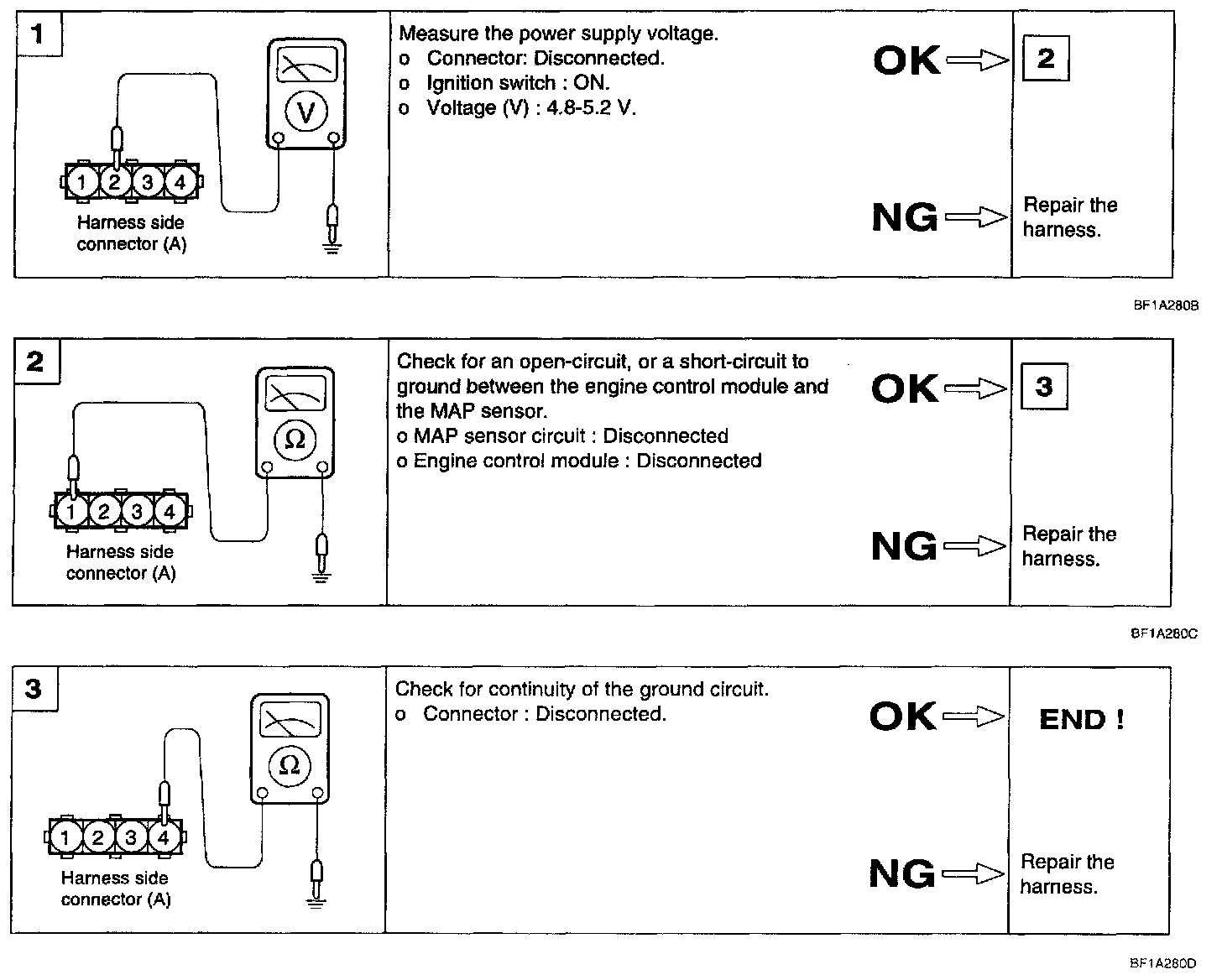

Harness Inspection Procedures:
