2003 Kia Optima L4-2.4LFACTORY OEM SERVICE PROCEDURE
Humidity Sensor: Description and Operation

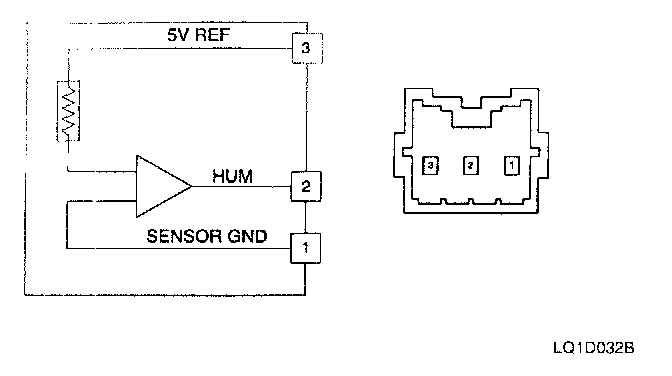

HUMIDITY SENSOR
1. Humidity sensor is located at the rear package tray and detected in-car humidity for in-car humidity control.
2. If ambient air temperature or in-car humidity is outside certain range, it will turn on A/C to control in-car humidity preventing in-car fogging. Air conditioner operation depending on ambient temperature and humidity.

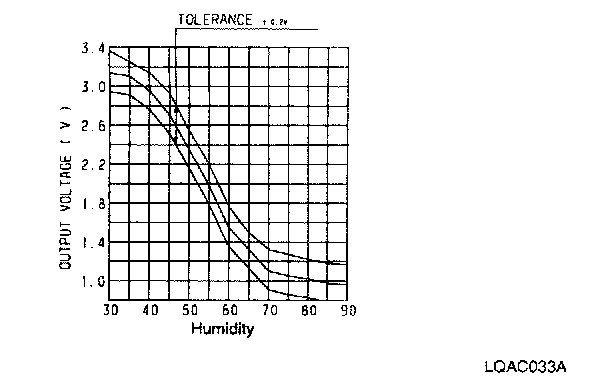

SENSOR OUTPUT
1. Humidity sensor is located at the rear package tray and detected in-car humidity for in-car humidity control.
2. If ambient air temperature or in-car humidity is outside certain range, it will turn on A/C to control in-car humidity preventing in-car fogging. Air conditioner operation depending on ambient temperature and humidity.

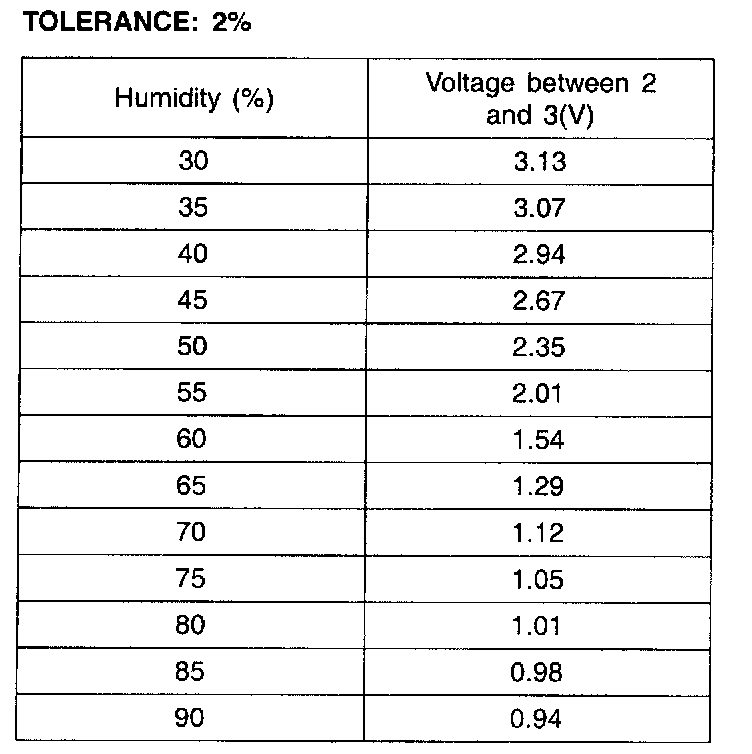

SENSOR OUTPUT
